Engine Control System Diagnosis (3 Of 3)
>>
DTC P0620: Alternator Control Circuit
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

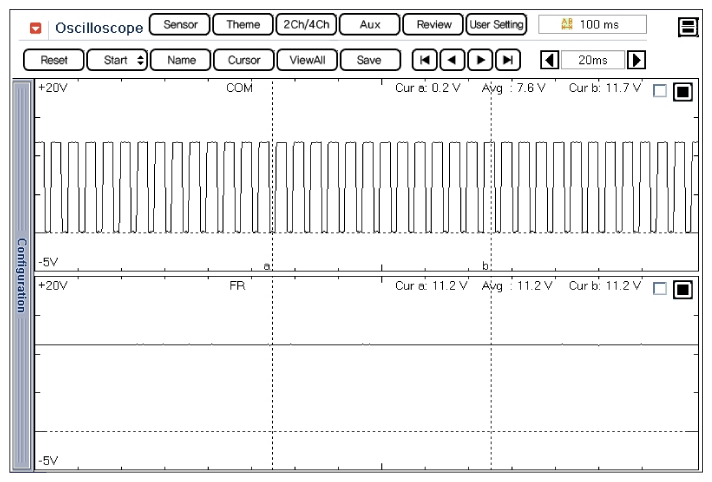

Fig 1: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle
Courtesy of KIA MOTORS AMERICA, INC.

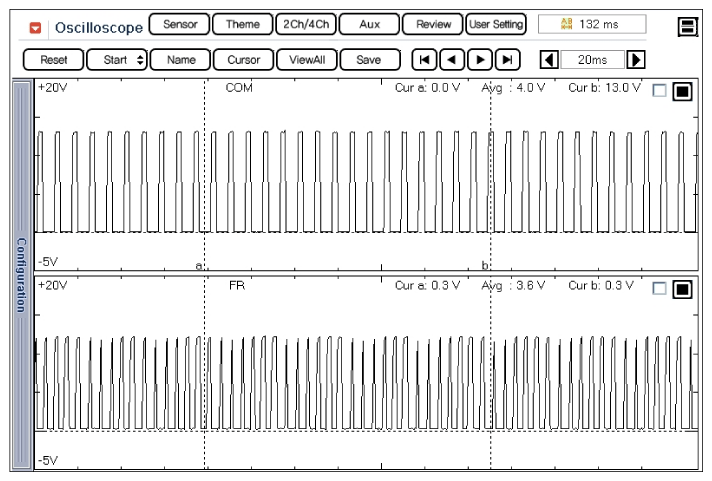

Fig 2: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator With Connector Disconnected Condition At IG ON
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
