Signal Waveform & Data

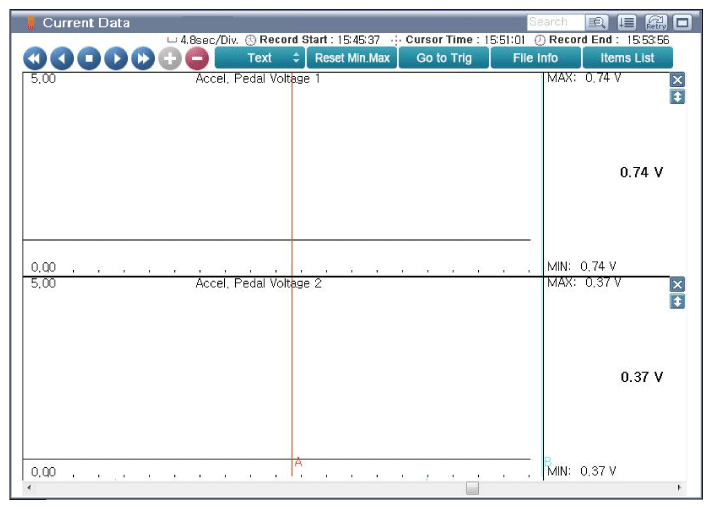

Fig 1: Screen Display - Normal Graph Of APS1 And APS2 With No Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

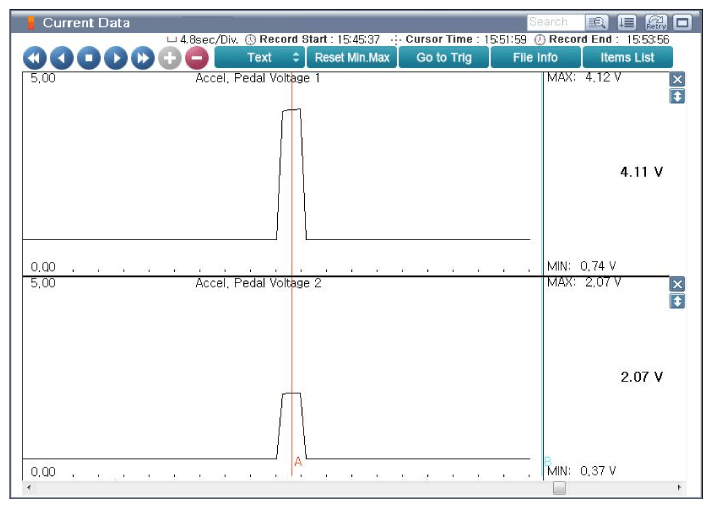

Fig 2: Screen Display - Normal Graph Of APS1 And APS2 With Acceleration (W.O.T)

Courtesy of KIA MOTORS AMERICA, INC.

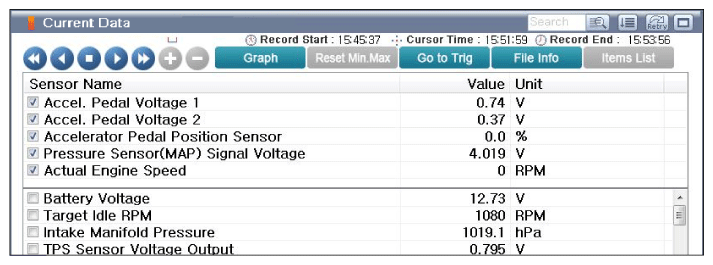

Fig 3: Screen Display - Normal Data Of APS1 And APS2 At IG ON

Courtesy of KIA MOTORS AMERICA, INC.

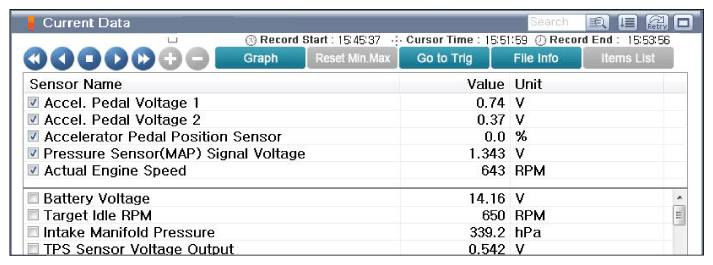

Fig 4: Screen Display - Normal Data Of APS1 And APS2 At Idle

Courtesy of KIA MOTORS AMERICA, INC.

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
