Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON".
- Turn the steering wheel to the left or right.

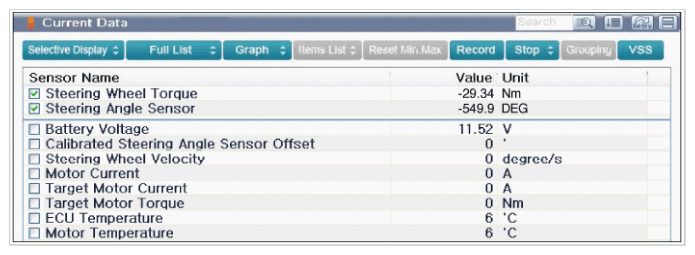

- Monitor the "Torque Sensor" parameters on the "Current Data " With GDS.
- Whenever steering wheel is turned, is the steering sensor's GDS data changed?
YES
- Fault is intermittent and caused either by poor contact in Torque sensor or wiring harness, or it has been repaired and EPS ECU memory is not cleared yet.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
- Fault is intermittent and caused either by poor contact in Torque sensor or wiring harness, or it has been repaired and EPS ECU memory is not cleared yet.
