Repair procedures: Disassembly

  1. Loosen the screw (6ea) and remove the lower cover (A) from the steering wheel body.
    Fig 1: Locating Lower Cover Of Steering Wheel Body
    G11784656Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the Wiring (A).
    Fig 2: Locating Steering Wheel Wiring
    G11784657Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the screw (2ea) and remove the remote control assembly (A) from the steering wheel body.
    Fig 3: Steering Wheel Body Screws
    G11784658Courtesy of KIA MOTORS AMERICA, INC.

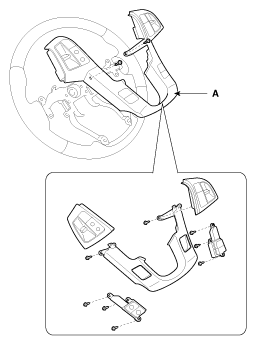

    Fig 4: Locating Remote Control Assembly With Screws
    G11784659Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of the removal.
