Components And Components Location: Components

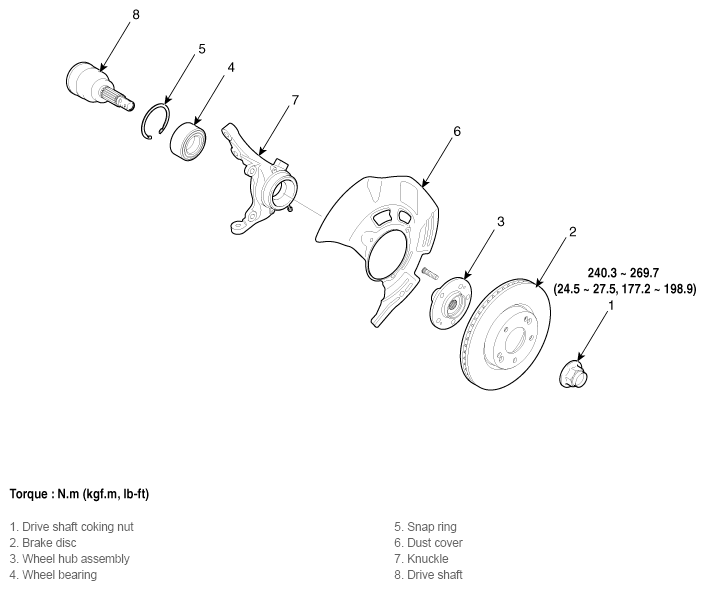

Fig 1: Exploded View Of Front Hub/Knuckle With Torque Specification
G11795346Courtesy of KIA MOTORS AMERICA, INC.
