Section 3 (Fuel Delivery System - 1.8L)
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location
WARNING:
This page is about a different variant/trim than selected.
[SULEV Type]

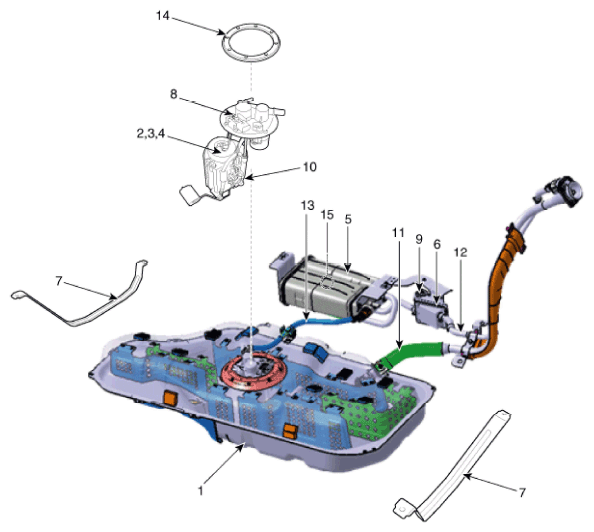

Fig 1: Fuel Delivery System Components Location (SULEV Type)
Courtesy of KIA MOTORS AMERICA, INC.
[LEV2 Type]

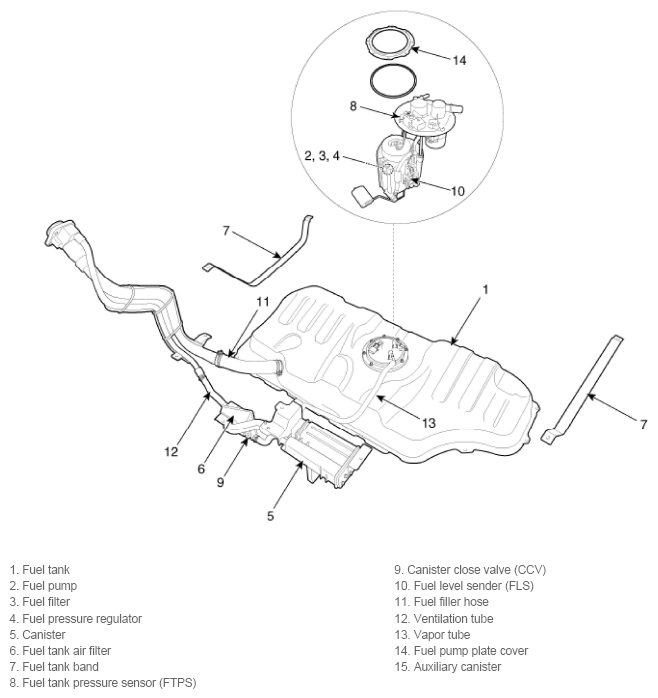

Fig 2: Fuel Delivery System Components Location (LEV2 Type)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
