Circuit Diagram (1)

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

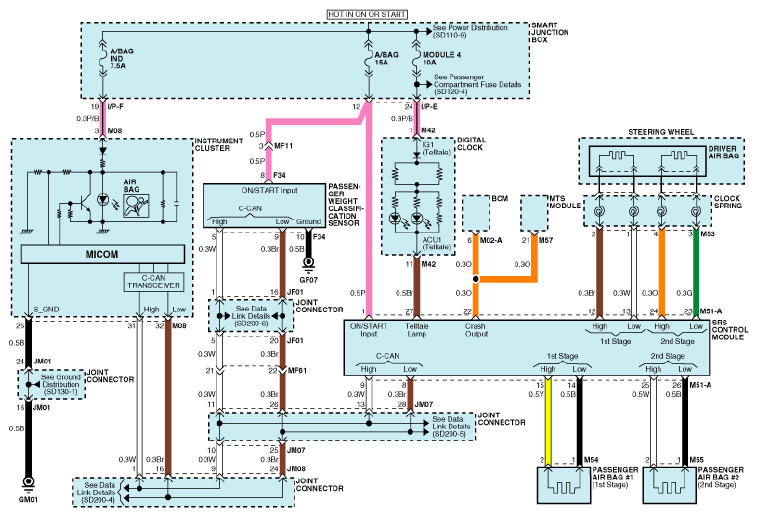

Fig 1: Weight Classification System Circuit Diagram - 1
G09743679Courtesy of KIA MOTORS AMERICA, INC.
