SRSCM Connector Terminal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

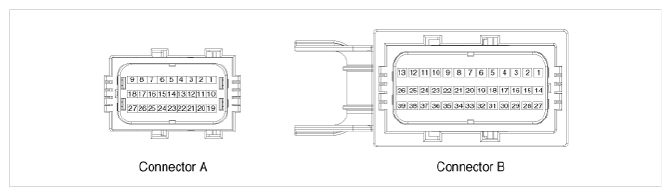

Fig 1: SRSCM Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function (Connector A)	Pin	Function (Connector B)
1	Ignition	1	Passenger side impact sensor (+)
2	-	2	Passenger side impact sensor (-)
3	-	3	Driver side impact sensor (+)
4	Driver front impact sensor (+)	4	Driver side impact sensor (-)
5	Driver front impact sensor (-)	5	Passenger pressure side impact sensor (+)
6	Passenger front impact sensor (+)	6	Passenger pressure side impact sensor (-)
7	Passenger front impact sensor (-)	7	Driver pressure side impact sensor (+)
8	CAN_Low	8	Driver pressure side impact sensor (-)
9	CAN_High	9	-
10	Shorting bar	10	-
11	Shorting bar	11	Driver seat belt buckle switch Low
12	(1st stage) Driver airbag (+)	12	Driver seat belt buckle switch High
13	(1st stage) Driver airbag (-)	13	Ground
14	(1st stage) Passenger airbag (-)	14	Driver seat belt pretensioner (+)
15	(1st stage) Passenger airbag (+)	15	Driver seat belt pretensioner (-)
16	-	16	Passenger seat belt pretensioner (-)
17	-	17	Passenger seat belt pretensioner (+)
18	-	18	Driver curtain airbag (+)
19	-	19	Driver curtain airbag (-)
20	-	20	Driver Emergency fastening device (-)
21	-	21	Driver Emergency fastening device (+)
22	Crash Output	22	Passenger Emergency fastening device (+)
23	(2nd stage) Driver airbag (-)	23	Passenger Emergency fastening device (-)
24	(2nd stage) Driver airbag (+)	24	-
25	(2nd stage) Passenger airbag (+)	25	Passenger seat belt buckle sensor High
26	(2nd stage) Passenger airbag (-)	26	Passenger seat belt buckle sensor Low
27	Telltale lamp	27	Driver side airbag (+)
		28	Driver side airbag (-)
		29	Passenger side airbag (-)
		30	Passenger side airbag (+)
		31	Passenger curtain airbag (+)
		32	Passenger curtain airbag (-)
		33	-
		34	-
		35	-
		36	-
		37	-
		38	-
		39	-
