Charging System - 1.8L: Battery: Troubleshooting

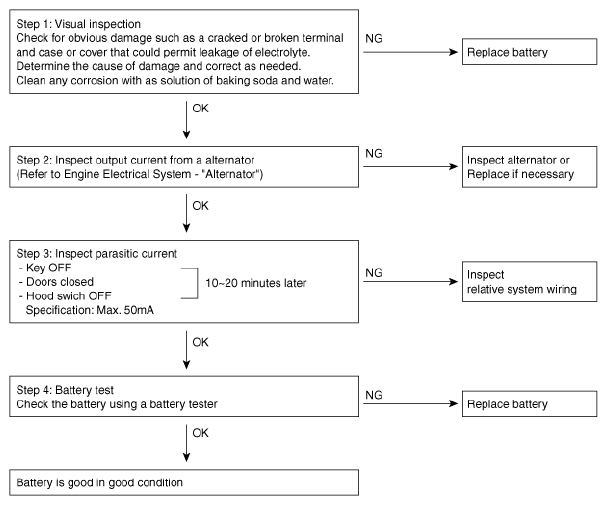

Fig 1: Battery Troubleshooting Flowchart

G11793458

Courtesy of KIA MOTORS AMERICA, INC.
