Engine Oil Schemetics

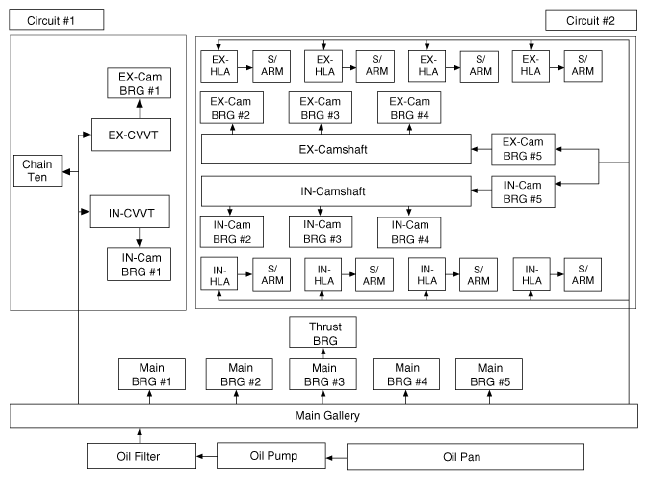

Fig 1: Engine Oil Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
