Idle Stop & Go (ISG) System - 1.8L
>>
Oil Pump Unit (OPU)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

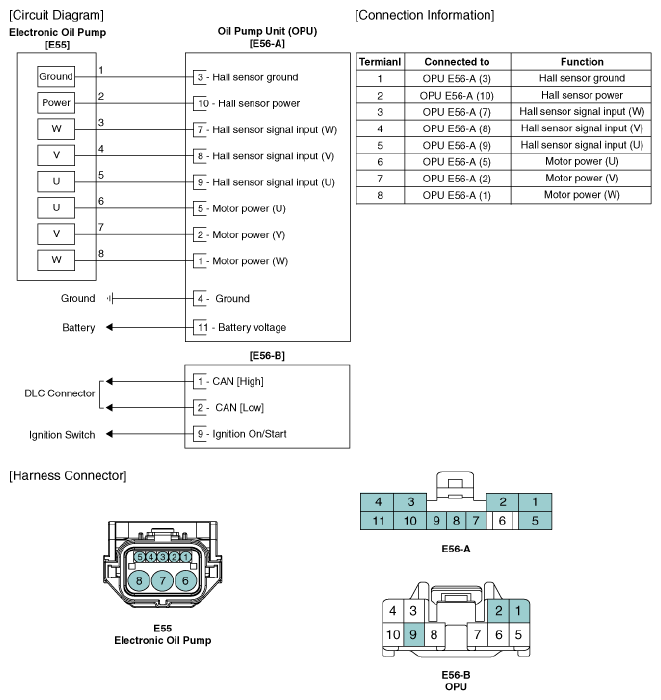

Fig 1: Oil Pump Unit Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
