Signal Waveform & Data

Connect GDS and select Data Analysis.
After warming-up, check following conditions.

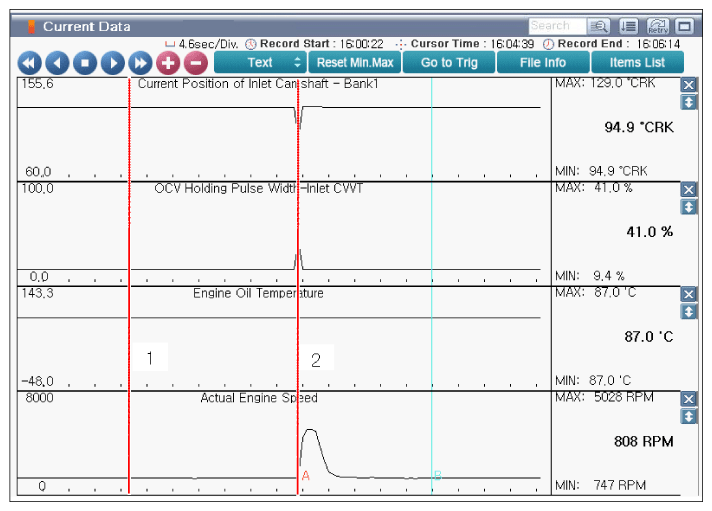

Fig 1: Screen Display - Normal Current Data At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
1. Normal Current Data at idle: "Current position of inlet Camshaft - bank1": Approx. 128° CRK, "OCV holding pulse width-inlet CVVT": Approx. 9.4%
2. Normal Current Data at acceleration:"Current position of inlet Camshaft - bank1": Approx. 95° CRK, "OCV holding pulse width-inlet CVVT": Approx. 41.0%
