Signal Waveform & Data

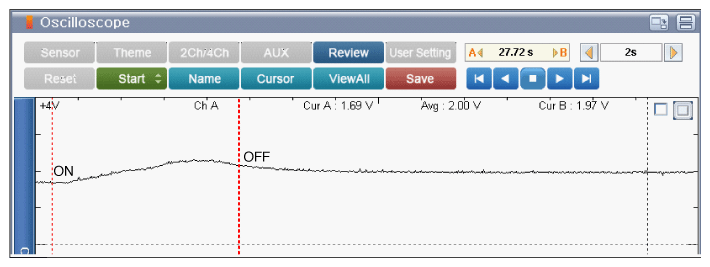

Fig 1: Screen Display - Normal Waveforms Of A/C Pressure Sensor During Time From Turning ON A/C Switch
G11798708Courtesy of KIA MOTORS AMERICA, INC.
