WARNING: This page is about a different car, the 2015 Kia Forte5 and 2015 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.

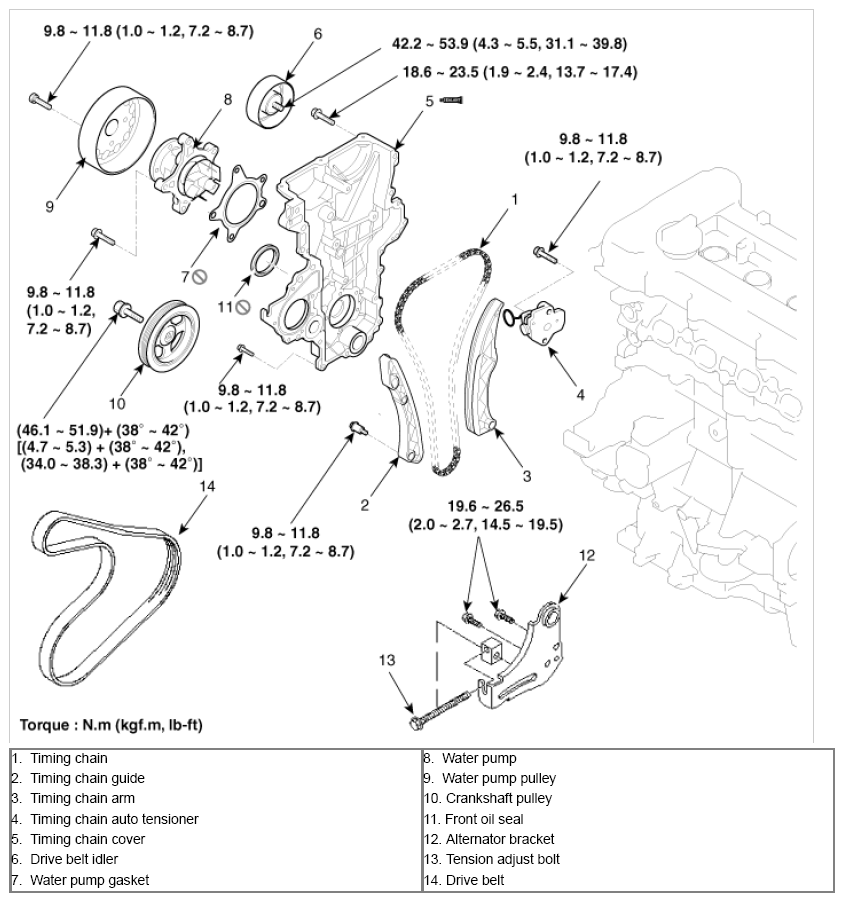

Fig 1: Exploded View Of Timing System Components With Torque Specifications
