Signal Waveform & Data

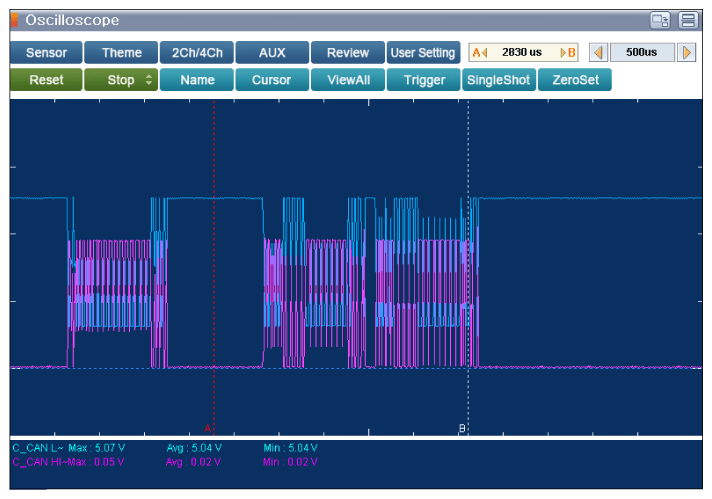

Fig 1: Screen Display - C_CAN Low & High Signal Waveform
G11796035Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Screen Display - C_CAN BUS Voltage Level (High Speed CAN)
G11796036Courtesy of KIA MOTORS AMERICA, INC.
