Parking Assist System
>>
Description And Operation
>>
System Overview
>>
System Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Block Diagram

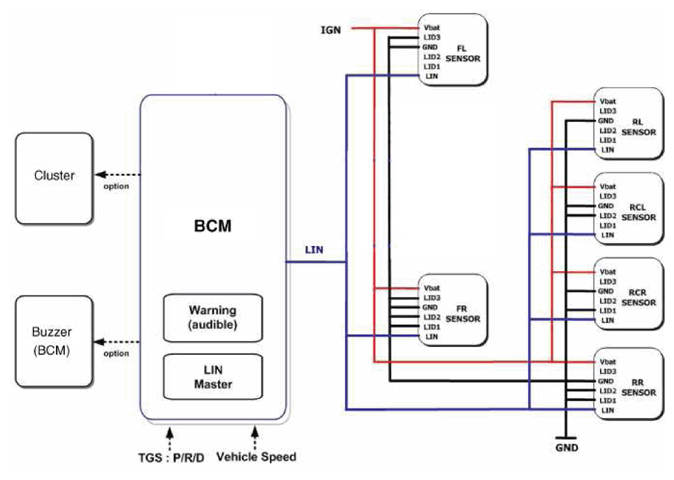

Fig 1: Parking Assist System Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
