Signal Waveform & Data

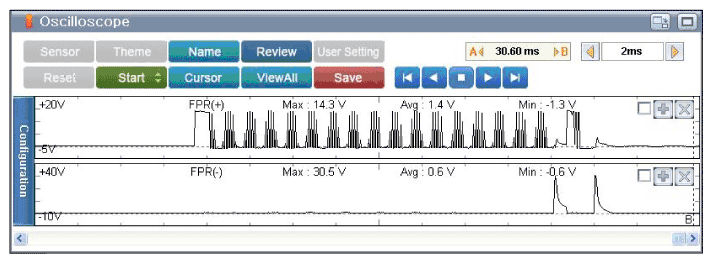

Fig 1: Scantool Display - Normal Waveform Of FPR At Idle
G11799812Courtesy of KIA MOTORS AMERICA, INC.

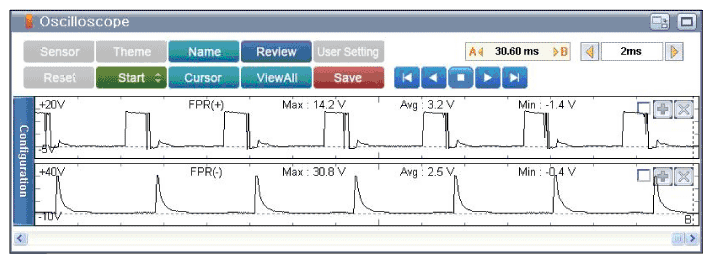

Fig 2: Scantool Display - Normal Waveform Of FPR At Acceleration
G11799813Courtesy of KIA MOTORS AMERICA, INC.
