TPMS Sensor Position (PS474)
WARNING: This page is about the Forte5 SX, Automatic Trans, which is a different variant/trim than selected.
Publication date: 2017-06-01Reference number: PS474
TPMS SENSOR POSITION
TECHNICAL SERVICE BULLETIN
Reference Number(s): PS474, Date of Issue:
June, 2017
| KIA: | All Models w/TPMS |
| GROUP: | Chassis |
SERVICE INFORMATION

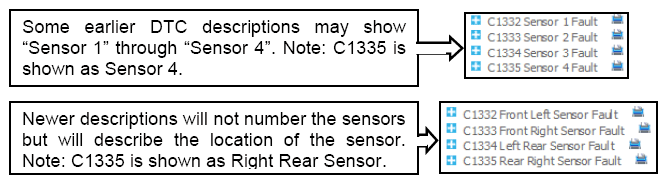

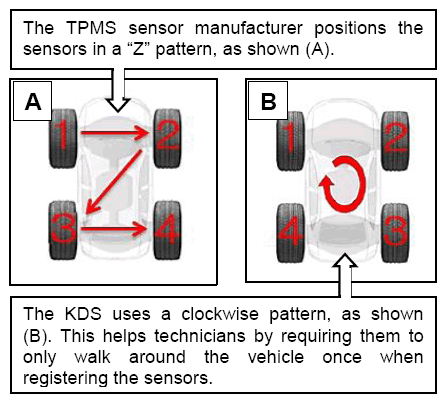

When diagnosing TPMS-related DTCs, make sure you are investigating the correct sensor. The TPMS positioning from the manufacturer may be different from the positioning shown on a KDS. See the diagram below.
