Components And Components Location: Components

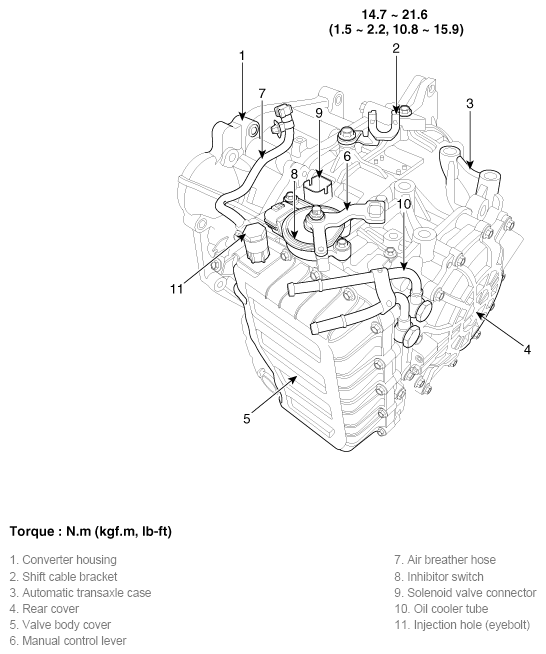

Fig 1: Automatic Transaxle System Components Location
G11797086Courtesy of KIA MOTORS AMERICA, INC.
