Components And Components Location: Components

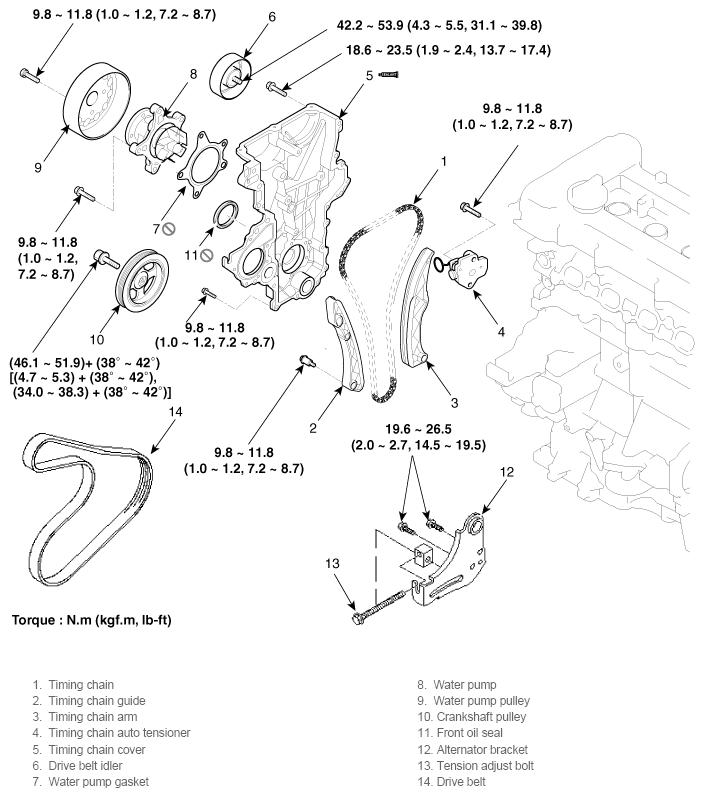

Fig 1: Exploded View Of Timing System With Torque Specification
G11794310Courtesy of KIA MOTORS AMERICA, INC.
