Component Inspection

■ Perform ETC Motor

1. Connect GDS to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform appropriate service information.

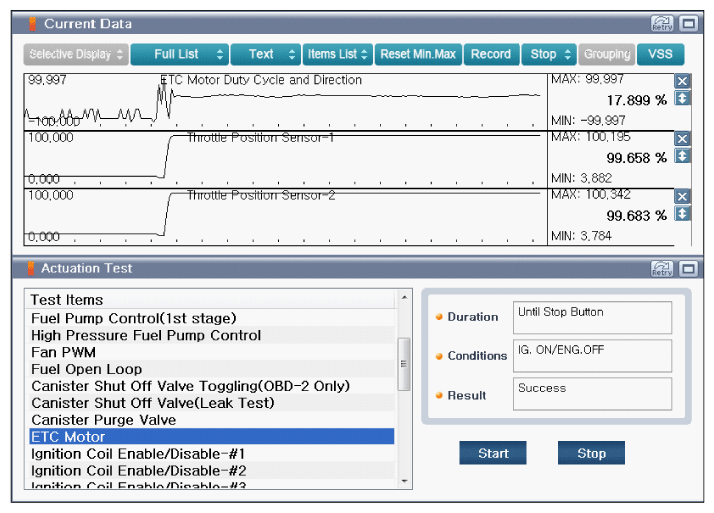

Fig 1: Display - ETC Motor Actuation Test Screen

Courtesy of KIA MOTORS AMERICA, INC.

■ Inspection ETC Motor

1. IG Key "OFF".
2. Disconnect ETC Motor connector.
3. Measure voltage between power and control terminal of the ETC Motor. (Component Side)

   Specification:  Approx. 0.3 ~ 100Ω [20°C(68 °F)]

■ Confirm Part Inspection

1. Does the ETC Motor operate properly? (Check variation)

   YES

   • Go to "Check ETC motor voltage" as follows.

   NO

   • Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.
