Components Location

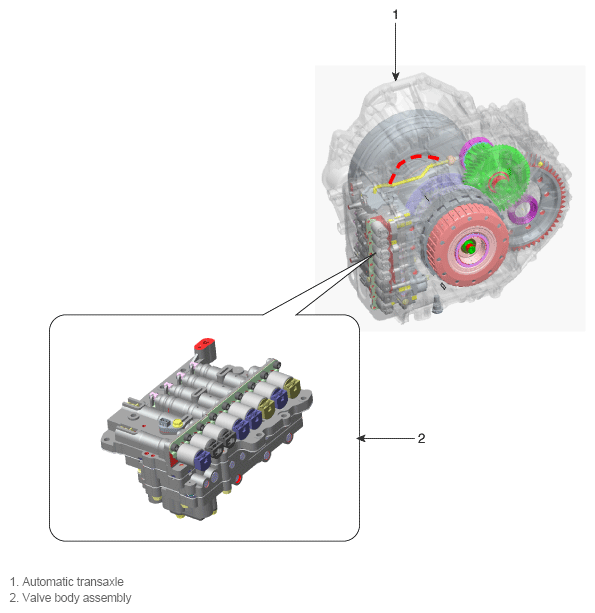

Fig 1: Locate Valve Body Assembly
G11795176Courtesy of KIA MOTORS AMERICA, INC.

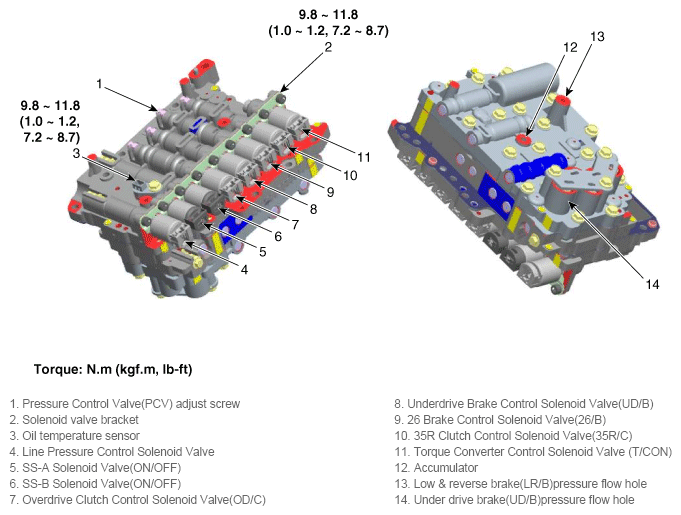

Fig 2: Valve Body Assembly Components Location
G11795177Courtesy of KIA MOTORS AMERICA, INC.
