Monitor GDS Data
WARNING: This page is about a different variant/trim than selected.
- IG KEY "ON" & Engine "OFF".
- Erase DTC after connecting GDS.

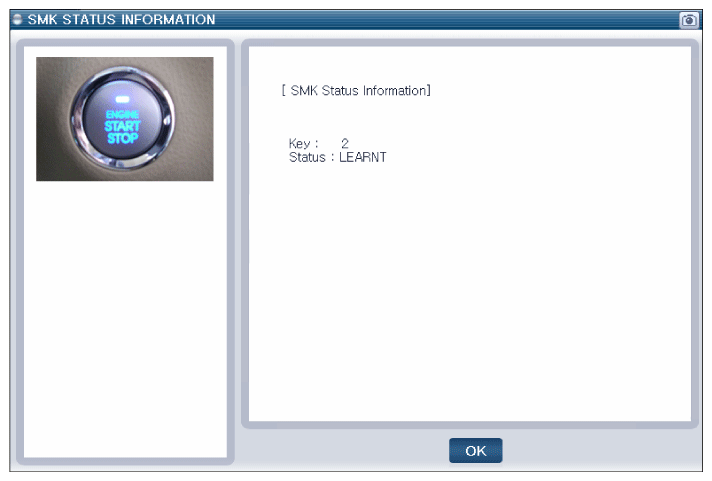

- Check Smart key status in "Vehicle S/W Management", if DTC is retrieved.
- Is the smart Key ECM learnt?
YES
- Neutralize the PCM/ECM after erasing the DTC with GDS.
Check that system is normal after checking the DTC againg.
(If the DTC is set again, replace PCM/ECM)
Wait for more than 1 min.
with IG ON so that smart key ECM register PIN into Engine ECM automatically.
NO
- Perform key teaching procedure after replacing PCM/ECM and then, go to "Verification Of Vehicle Repair " Procedure.
NOTE:- PIN code is programmed in Smart key ECM, Transponder, ESCL.
- If the Smart key ECM is not registered with PIN, key teaching process is not proceeded
- Registering PIN is available after Smart Key ECM is neutralized.
- Neutralization of Engine ECM is available with GDS (Registering PIN code)
- If the virgin engine ECM is installed on vehicle, Engine ECM is automatically programmed PIN code by Smart Key ECM
- Registering PIN code is only possible for virgin or neutralized status.
- All Learning procedure is able to do with a scan tool in the vehicle's ignition key off state.

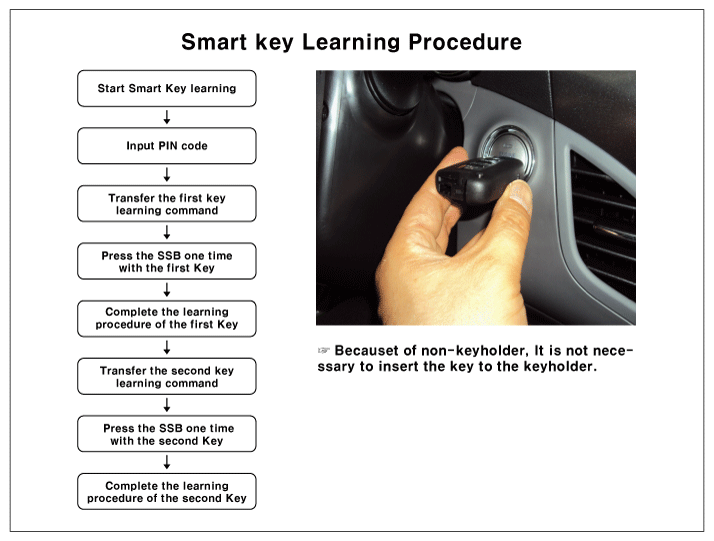

- Smart Key ECM Learning
- Before learning procedure for FOB Key, ESCL, Smart Key ECM should be registered PIN code first.
- In case of replacing Smart Key ECM, All of the keys should be newly registered again.
- In case that Smart Key ECM receives 3 times with wrong PIN, It is not allowed for neutralization and Key Teaching for 1 hour.
- If the battery is discharged during neutralization or Teaching, Timer will start again from beginning. Therefore, it is avoidable to wait for 1 hour.
- ESCL Learning
- It is O.K for registering ESCL just one time. And, it is available for ESCL to neutralize and re-teach with same PIN code.
- Smart Key ECM Learning
- Neutralize the PCM/ECM after erasing the DTC with GDS.
