Components Location

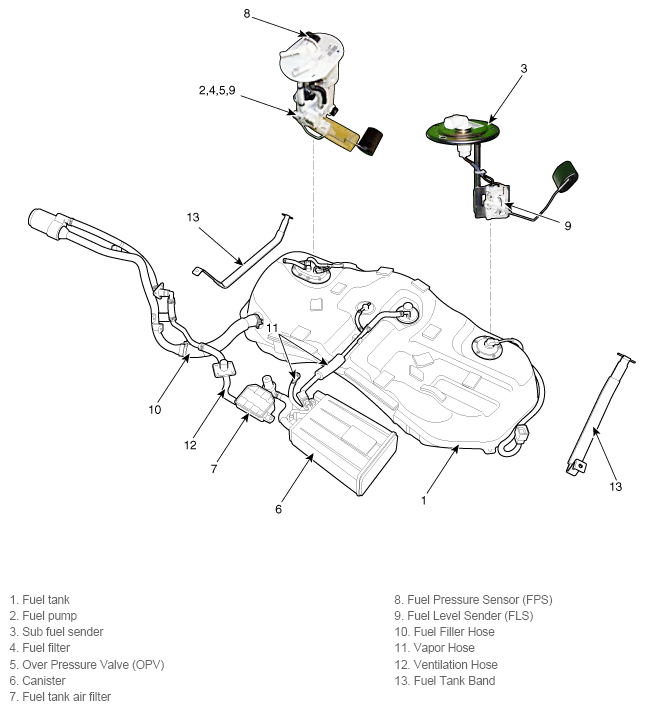

Fig 1: Exploded View Of Fuel Delivery System Components

Courtesy of KIA MOTORS AMERICA, INC.

[High Pressure Fuel Line]

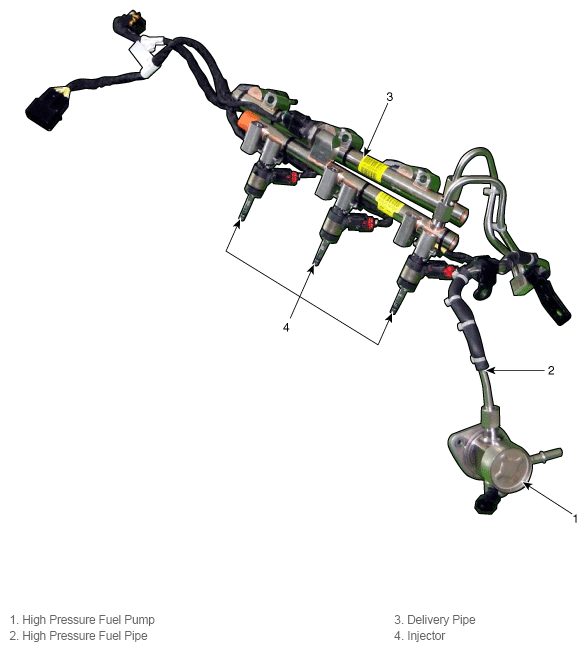

Fig 2: Exploded View Of High Pressure Fuel Line Components

Courtesy of KIA MOTORS AMERICA, INC.

WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any remedy work right after engine stops.
