Auto Detected Configuration Reset, Variant Coding

Connect GDS to DLC(Data Link Cable)
Select the "Vehicle S/W Management" about related DTC with GDS(Auto detected configuration reset).

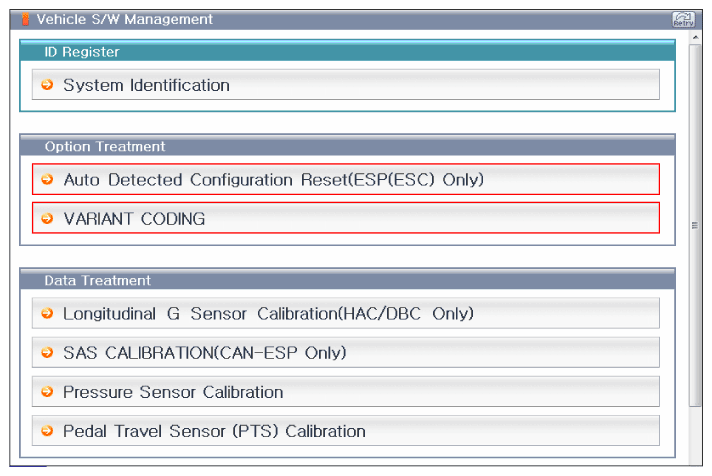

Fig 1: Screen Display - Selecting Auto Detected Configuration Reset & Variant Coding (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

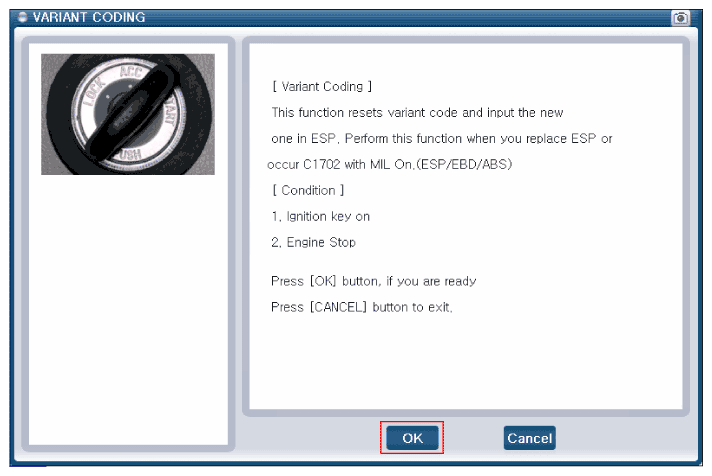

Fig 2: Screen Display - Setting Variant Coding Conditions (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

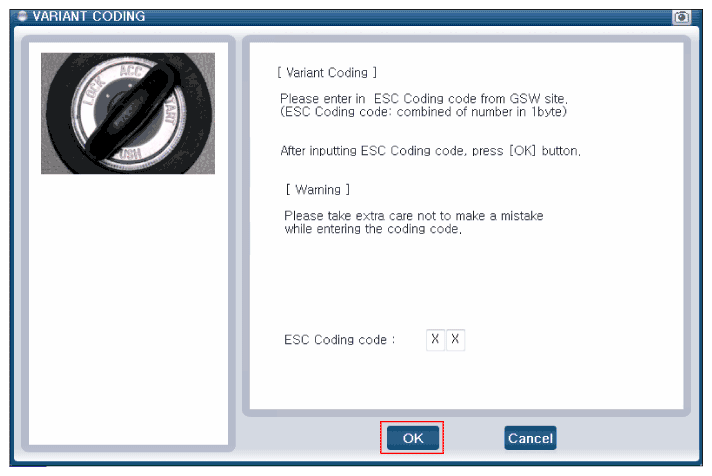

Fig 3: Screen Display - Entering In ESC Coding Code From GSW Site (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

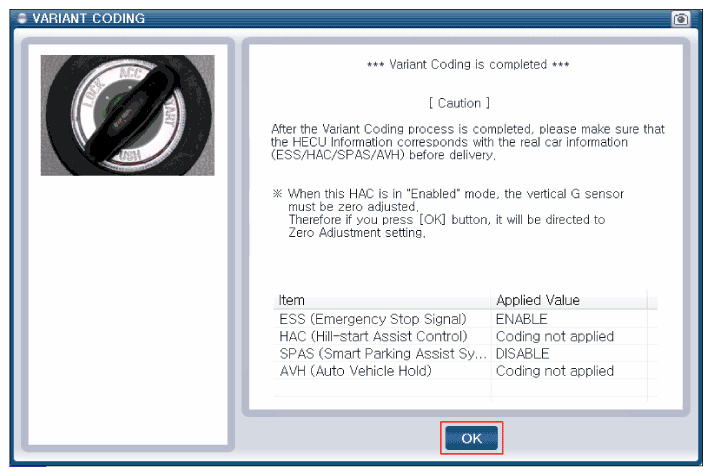

Fig 4: Screen Display - Variant Coding Completed (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Select the "Vehicle S/W Management" about related DTC with GDS(Variant coding).

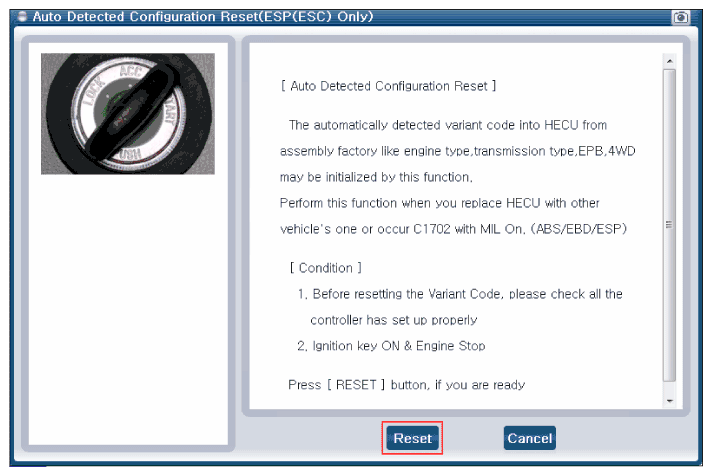

Fig 5: Screen Display - Auto Detected Configuration Resetting (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

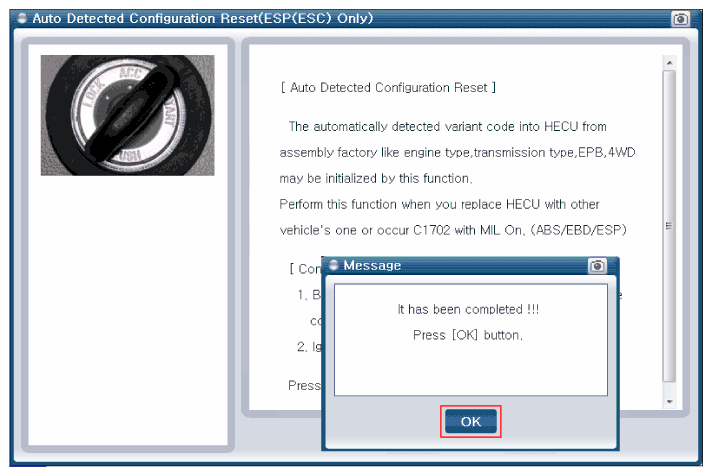

Fig 6: Screen Display - Auto Detected Configuration Completed (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
When the "Vehicle S/W Management" has been finished perfectly, go to Verification Of Vehicle Repair procedure below.
