Circuit Diagram

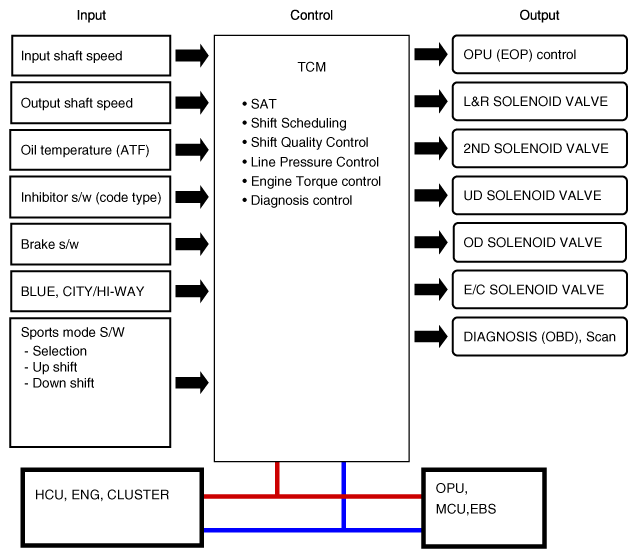

Fig 1: Automatic Transaxle System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
