Circuit Diagram

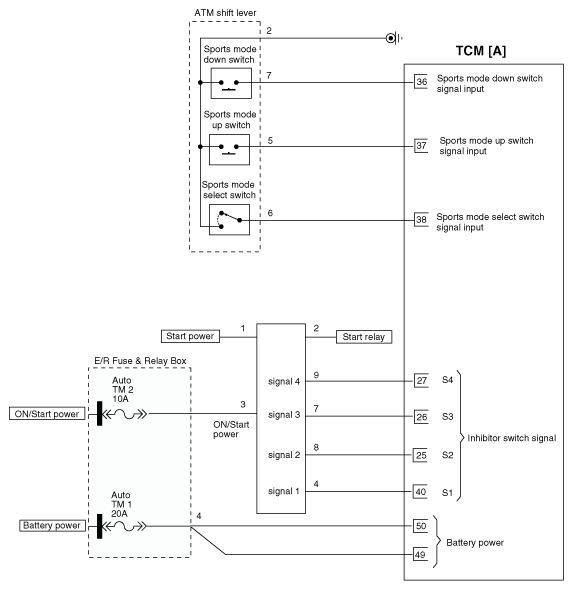

Fig 1: TCM And ATM Shift Lever Circuit Diagram (1 Of 2)
G11815952Courtesy of KIA MOTORS AMERICA, INC.

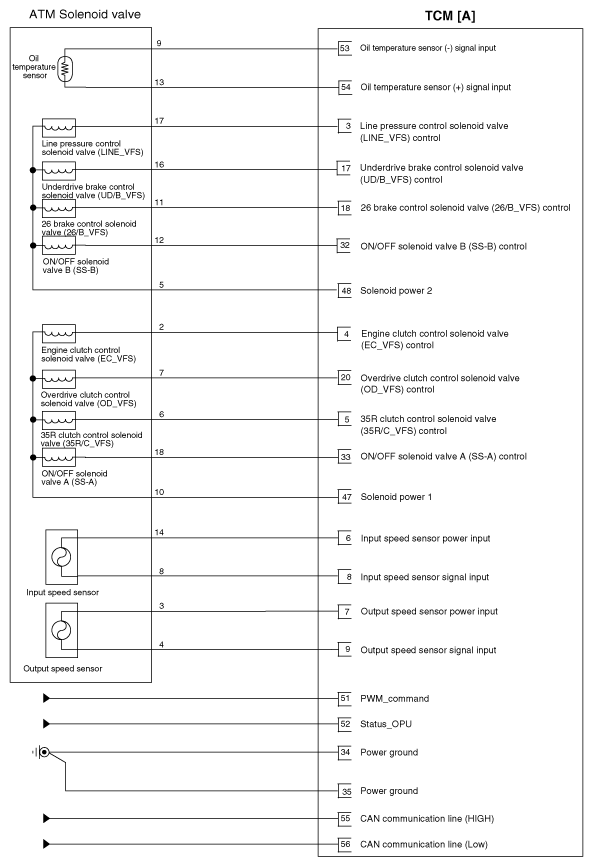

Fig 2: TCM And ATM Solenoid Valve Circuit Diagram (2 Of 2)
G11815953Courtesy of KIA MOTORS AMERICA, INC.
