Trunk Open Switch

  1. Check for continuity between the trunk open switch terminals.

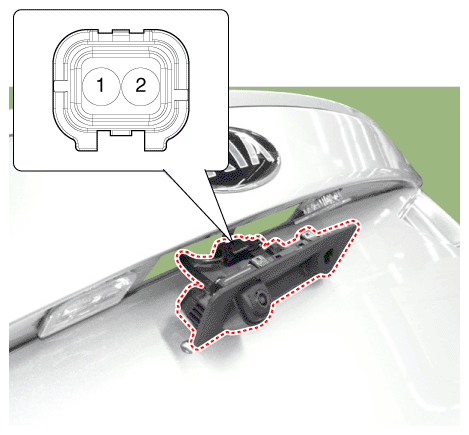

    Fig 1: Trunk Open Switch Connector Terminals
    G11825061Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not as specified, inspect the switch.
Fig 2: Trunk Open Switch Terminals Description Chart
G11825062Courtesy of KIA MOTORS AMERICA, INC.
