Monitor KDS/GDS Data

■ Cluster module variant coding

1. Verify vehicle options and have VIN code in hand.
2. Perform "CLU VARIANT CODING " in the "Vehicle S/W Management" with KDS/GDS.
3. Check for DTCs in the system.

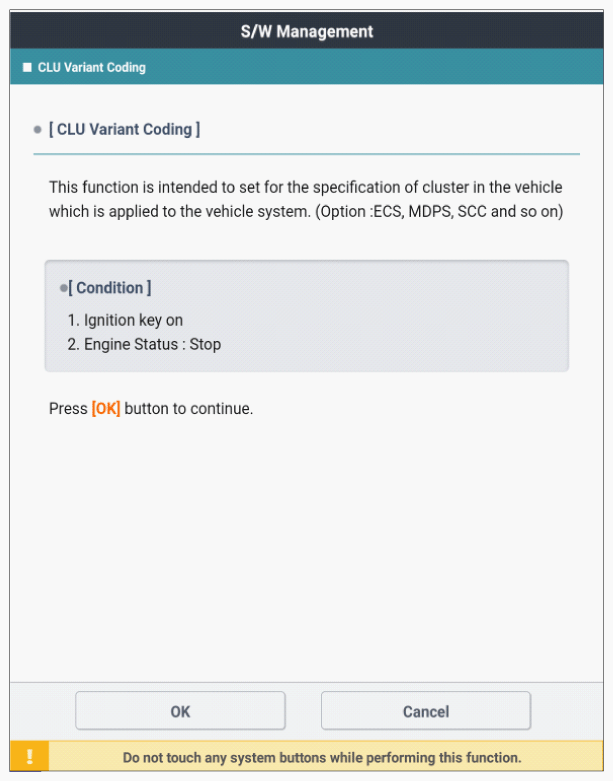

   Fig 1: Display - Cluster Variant Coding Enter VIN Code (On-Line) (1 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.

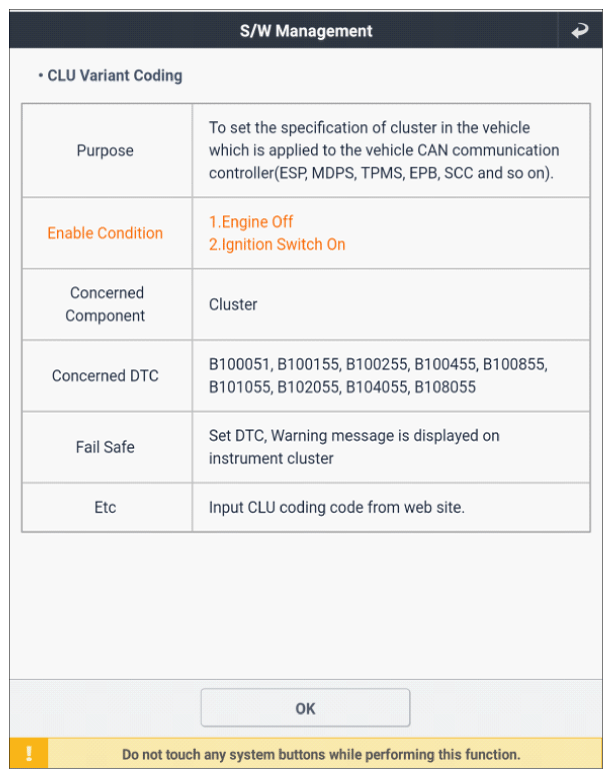

   Fig 2: Display - Cluster Variant Coding Enter VIN Code (On-Line) (2 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.

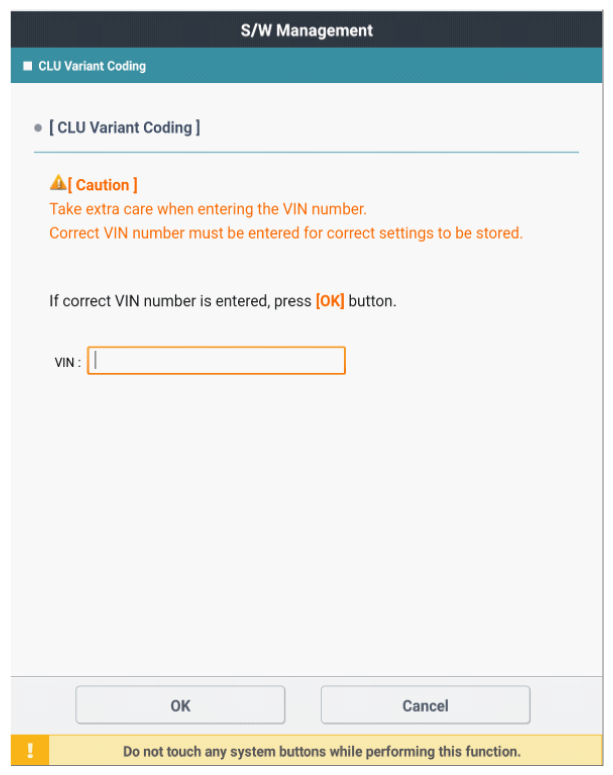

   Fig 3: Display - Cluster Variant Coding Enter VIN Code (On-Line) (3 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.

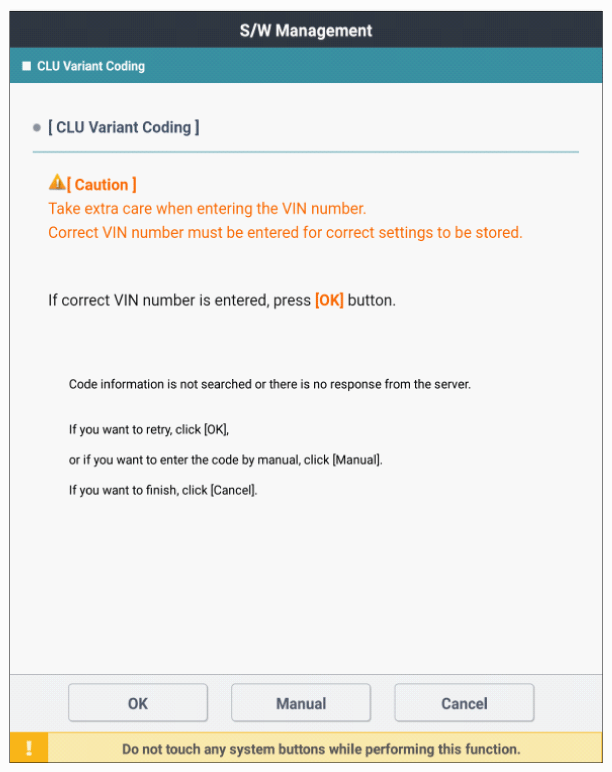

   Fig 4: Display - Cluster Variant Coding Enter CLU Coding Code (Off-Line) (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

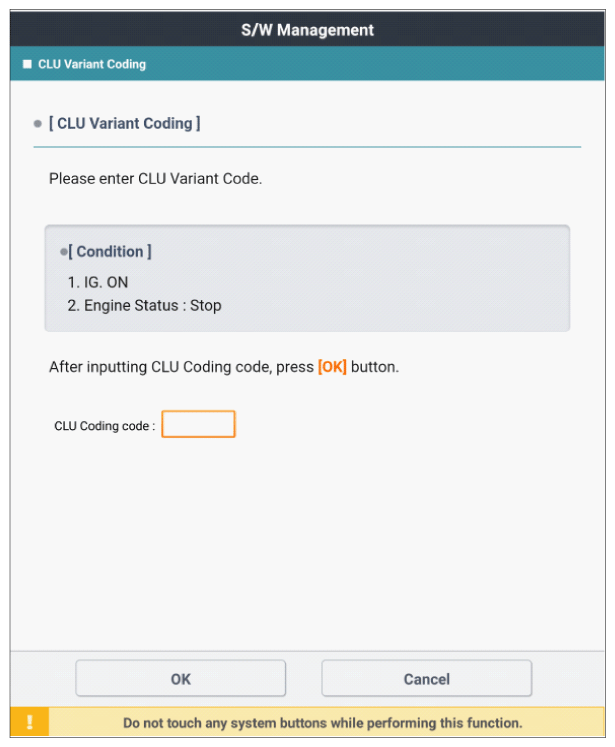

   Fig 5: Display - Cluster Variant Coding Enter CLU Coding Code (Off-Line) (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the DTCs stored in the system as a present?

   YES

   • Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with KDS/GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.
