Engine Control System Diagnosis - 2.0L (3 Of 3) - Optima (Except HEV)
>>
DTC U0109-00: Lost Communication With Fuel Pump Control Module
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

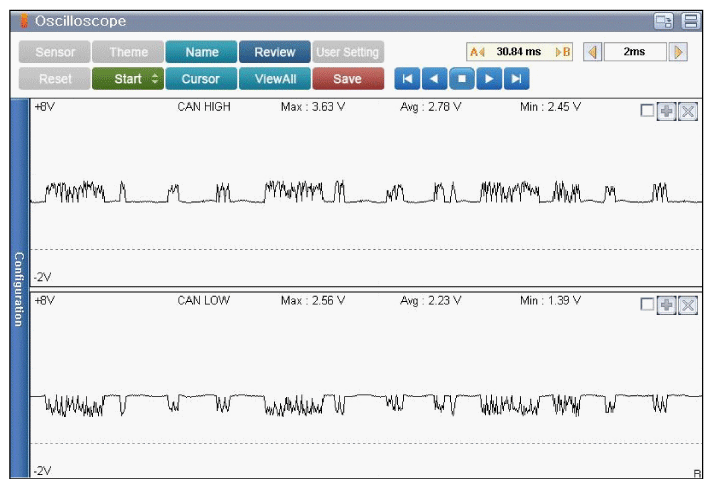

Fig 1: Scantool Display - Normal C-CAN Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
