Variant coding Procedure

■ On-Line type on KDS/GDS

1. Ignition "OFF", connect KDS/GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen below.

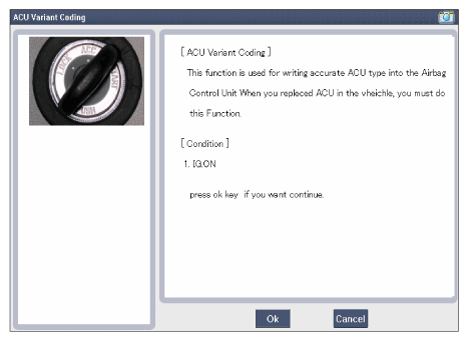

   1. Initial ACU Variant Coding screen
      Fig 1: Display - Initial ACU Variant Coding Screen

      Courtesy of KIA MOTORS AMERICA, INC.

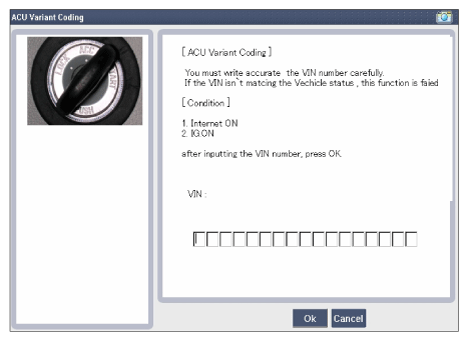

   2. VIN Code entering screen
      Fig 2: Display - VIN Code Entering Screen

      Courtesy of KIA MOTORS AMERICA, INC.

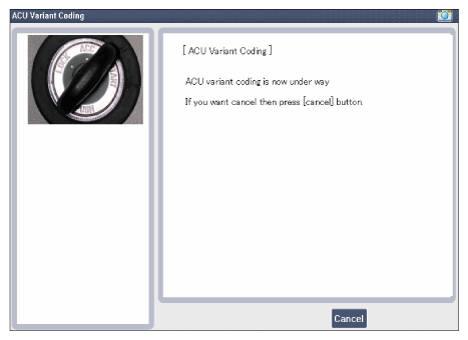

   3. Variant coding's proceeding screen-1

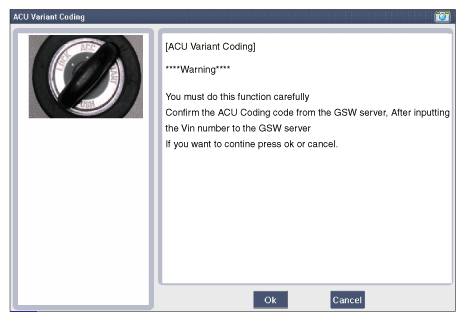

      Fig 3: Display - Variant Coding Proceeding Screen-1

      Courtesy of KIA MOTORS AMERICA, INC.

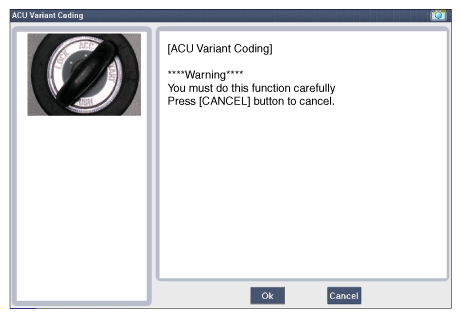

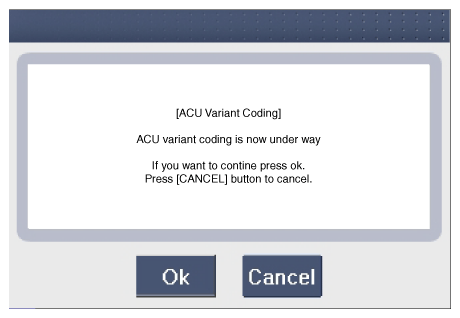

   4. Variant coding's proceeding screen-2
      Fig 4: Display - Variant Coding Proceeding Screen-2

      Courtesy of KIA MOTORS AMERICA, INC.

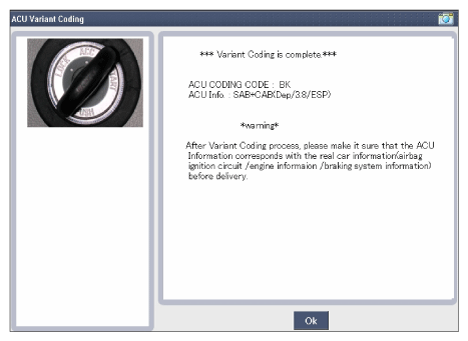

   5. Variant coding is completed
   Fig 5: Display - Variant Coding Completion Screen

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

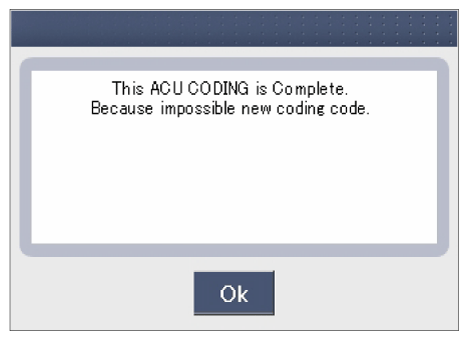

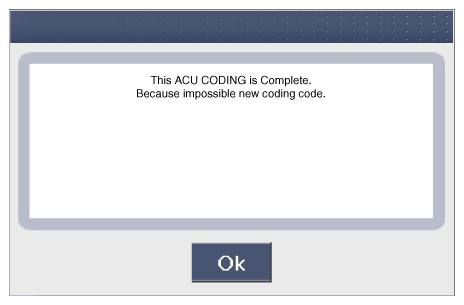

   1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.
      Fig 6: Display - ACU Coding Completion Screen

      Courtesy of KIA MOTORS AMERICA, INC.

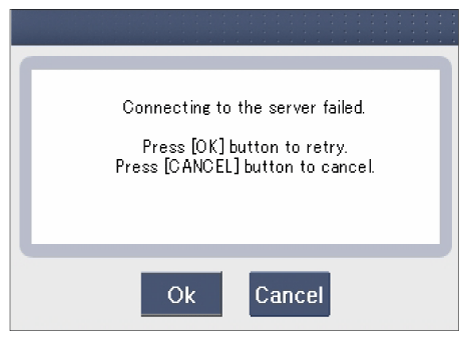

   2. Screen of communication failure
   Fig 7: Display - Communication Failure Screen

   Courtesy of KIA MOTORS AMERICA, INC.

   ■ Off-line type on KDS/GDS (This can be used when not connecting to internet)

   1. Initial ACU Variant Coding screen
      Fig 8: Display - Initial ACU Variant Coding Screen

      Courtesy of KIA MOTORS AMERICA, INC.

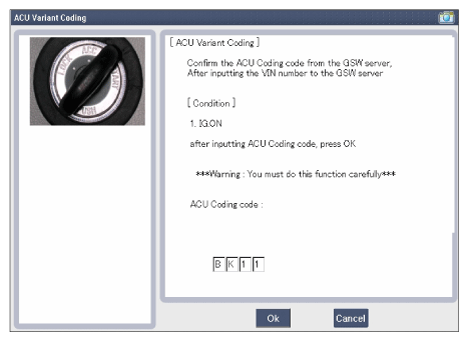

   2. ACU Coding Code entering screen
      Fig 9: Display - ACU Coding Code Entering Screen

      Courtesy of KIA MOTORS AMERICA, INC.
   3. Screen of rechecking ACU Coding code's entering
      Fig 10: Display - Rechecking ACU Coding Code Screen

      Courtesy of KIA MOTORS AMERICA, INC.

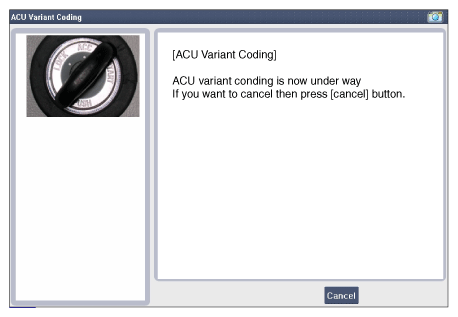

   4. Variant coding's proceeding screen-1
      Fig 11: Display - Variant Coding Proceeding Screen-1

      Courtesy of KIA MOTORS AMERICA, INC.

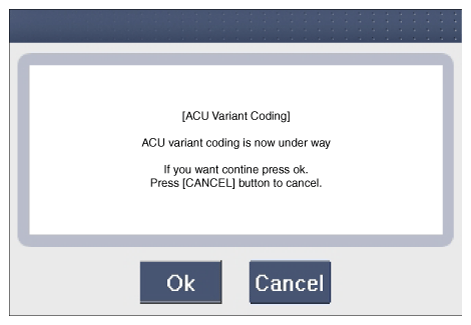

   5. Variant coding's proceeding screen-2
      Fig 12: Display - Variant Coding Proceeding Screen-2

      Courtesy of KIA MOTORS AMERICA, INC.
   6. Variant coding is completed
   Fig 13: Display - Variant Coding Completion Screen

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   1. This screen is opened when you try the variant coding again on the SRSCM which has been performed variant coding.
   Fig 14: Display - ACU Variant Coding Screen

   Courtesy of KIA MOTORS AMERICA, INC.
