Monitor DTC Status

Connect GDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.

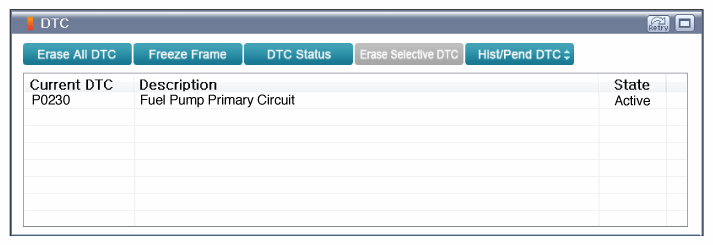

Fig 1: Screen Display - DTC Description
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed correctly?
YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
