Signal Waveform

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

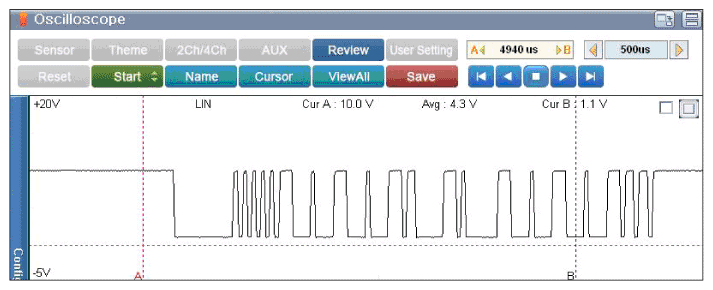

Fig 1: Scantool Display - Normal Waveform When Fault Detected By Sensor At Shift Lever D After IGN1 ON
G11813184Courtesy of KIA MOTORS AMERICA, INC.
