Section 215 (Body Control Module Diagnosis)
>>
DTC B1602-00: CAN Line Error (B-CAN)
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data
WARNING:
This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

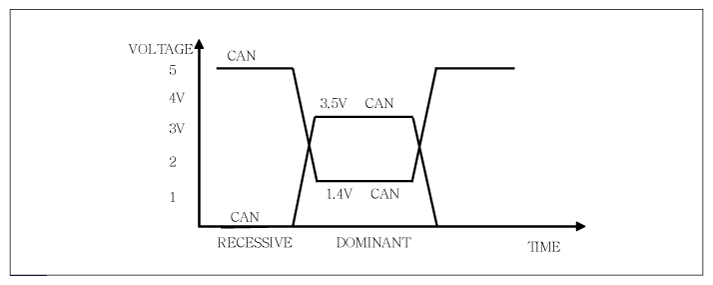

Fig 1: Scantool Display - CAN Low/High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Scantool Display - CAN Bus Voltage Level (Low Speed CAN)
Courtesy of KIA MOTORS AMERICA, INC.
