DTC B2801-00: MM CAN Single Line Error
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data
WARNING:
This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

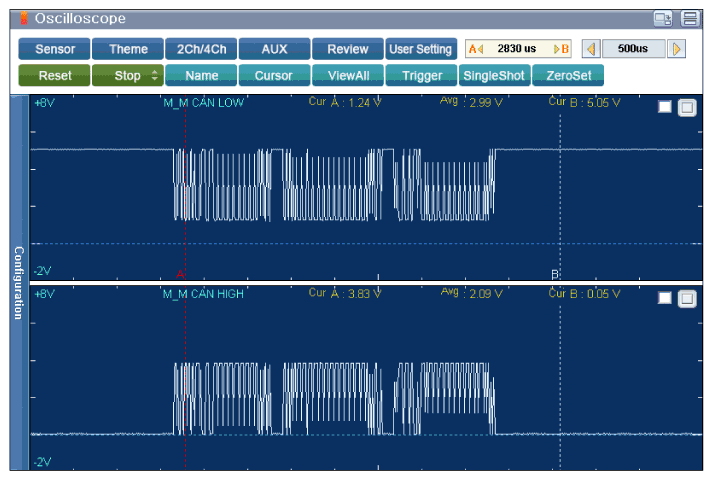

Fig 1: Scantool Display - MM CAN Low/High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

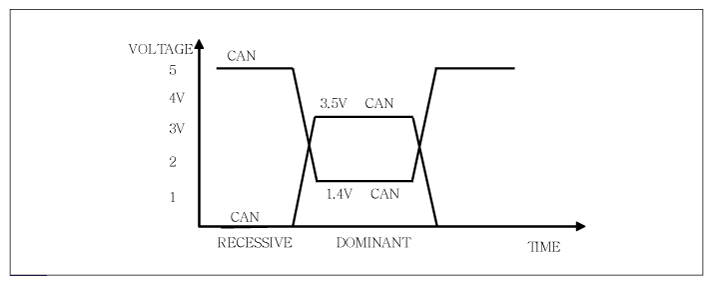

Fig 2: Scantool Display - MM CAN Bus Voltage Level (Low Speed CAN)
Courtesy of KIA MOTORS AMERICA, INC.
