Smart Cruise Control (SCC) Radar Alignment

Stop the vehicle on a level ground.
NOTE:
- Adjustment may not be accurate if the installation surface height, and angles of the vehicle and reflector are different.
- Perform in an area with minimum clearance of 8m front, 4m sides, and 1.2m above the vehicle.
- Remove heavy objects from inside of the vehicle (seating area and trunk).
- Ensure that all tires are filled with spec.. air pressure.
- Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.
- Be sure that the vehicle is firmly fixed to ground free from vibration when performing sensor alignment (getting in/out or opening/closing doors).
- Check that radiator grill and sensor cover are not dirty.
- Check that the wheel alignment is normal.
- DO NOT turn OFF the power when performing sensor alignment.
- Power supplied to the radar sensor must be between 9V~16V.
- Temperature in the area where sensor alignment is performed must be between -30~60°C.

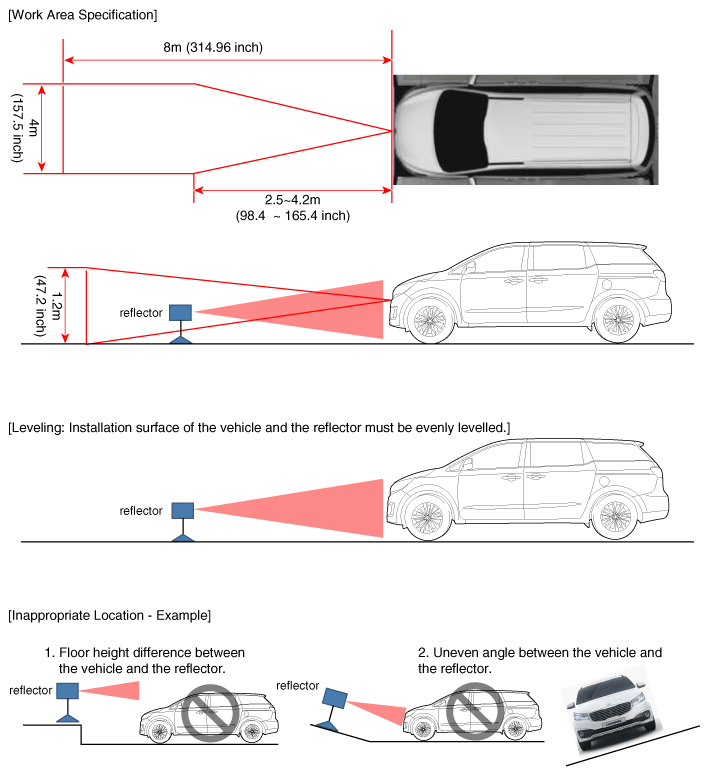

Fig 1: Leveling Work Area Specification
Courtesy of KIA MOTORS AMERICA, INC.

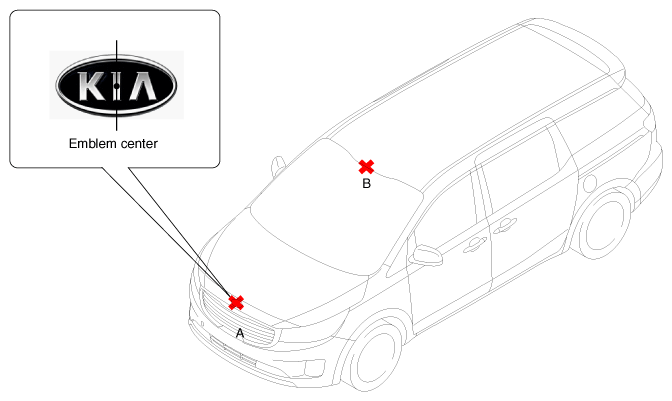

Mark the center point of emblem (A) and the center point on top of wind glass (B).

Fig 2: Marking Center Point Of Emblem
Courtesy of KIA MOTORS AMERICA, INC.
Connect the SCC Calibration Laser (SST No.: 09964-C1200) to the tripod (SST No.: 09964-C1300).

Fig 3: Connecting SCC Calibration Laser
Courtesy of KIA MOTORS AMERICA, INC.

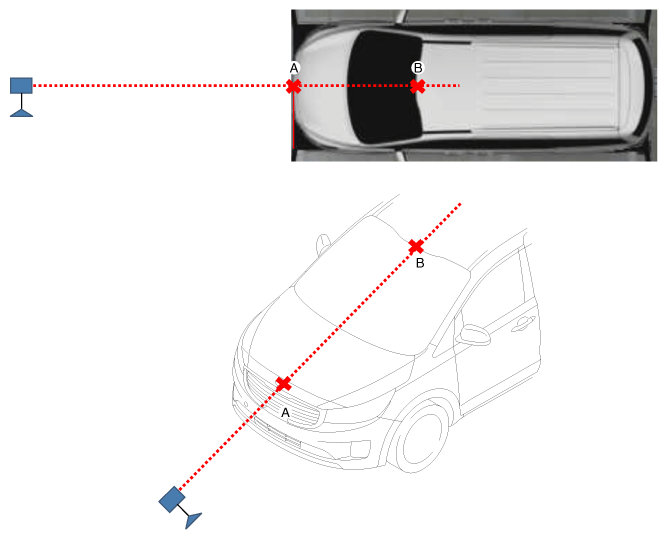

Match the vertical line of laser to (A) and (B) using the SCC calibration laser pointer.

Fig 4: Matching Vertical Line Of Laser
Courtesy of KIA MOTORS AMERICA, INC.

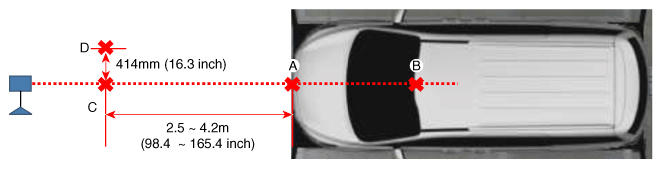

Mark (C) located in 2.5~4.2 m (98.4 ~ 165.4 inch) from (A) in front of the vehicle.
Mark (D) at the place which is 414 mm (16.3 inch) away from (C) to the left in vertical direction.

Fig 5: Marking Point (D) At Certain Distance From (C)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the SCC Calibration Laser (SST No.: 09964-C1200) from the tripod (SST No.: 09964-C1300).
Connect the reflector (SST No.: 09964-C1100) to the tripod (SST No.: 09964-C1300) and set the reflector center height to 394 mm.

Fig 6: Setting Reflector Center Height
Courtesy of KIA MOTORS AMERICA, INC.
Set the reflector horizontal using the leveler which is built in the tripod (SST No.: 09964-C1300).

Fig 7: Setting Reflector Horizontal Using Tripod Leveler
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Balance the level so that the bubble in the level is set between the spec. lines.

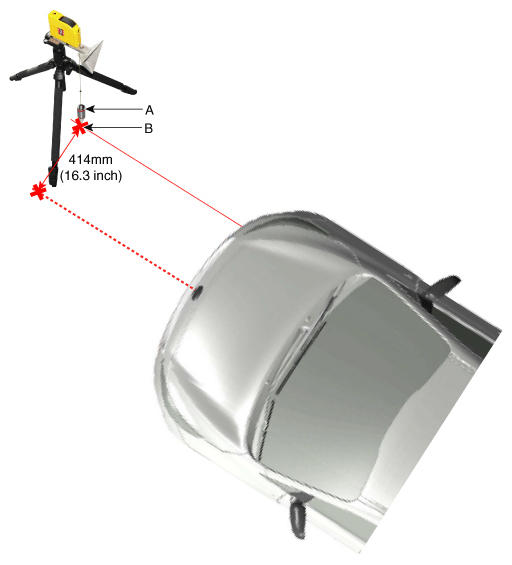

Install the reflector to match the weight (A) with the point (B).

Fig 8: Installing Reflector According To Weight
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Visually check that the reflecting side of the reflector is levelled with the front of the vehicle.
Check again the radar sensor and the surface of front bumper for the following parts with the eyes.
NOTE:
- Make sure that there is no debris, or reflecting object on the surface of the radar.
- Make sure that there is no debris, or reflecting object on the radiator grill.
Connect the GDS to the DLC of the vehicle and start sensor alignment.
NOTE: When the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.
After correctly selecting the vehicle model, select "SCC Alignment" from the auxiliary functions in GDS Menu.

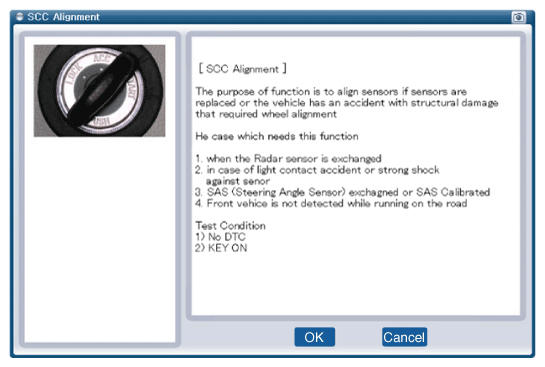

Fig 9: Selecting SCC Alignment
Courtesy of KIA MOTORS AMERICA, INC.
Perform sensor alignment by following the directions displayed on the GDS monitor.

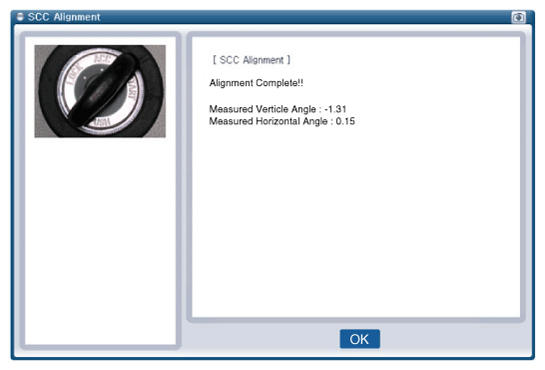

Fig 10: Performing Sensor Alignment
Courtesy of KIA MOTORS AMERICA, INC.
In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then re-perform the sensor alignment procedure.
