Engine Control System Diagnosis (1 Of 3)
>>
DTC P0090: Fuel Pressure Regulator 1 Control Circuit / Open
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

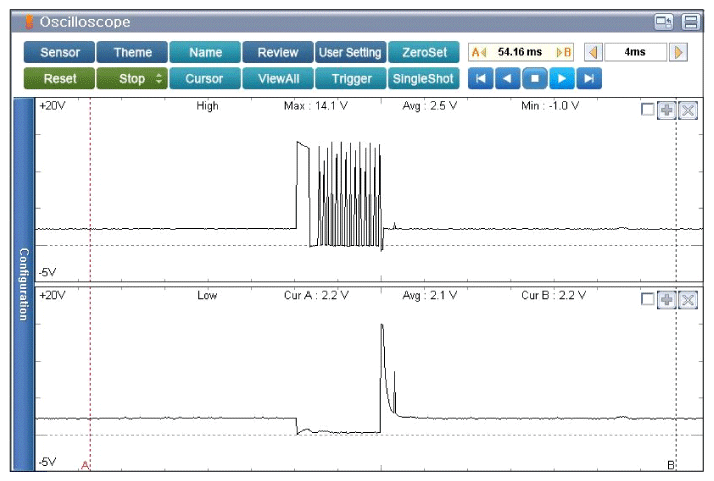

Fig 1: Screen Display - Normal Waveforms Of FPR At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.

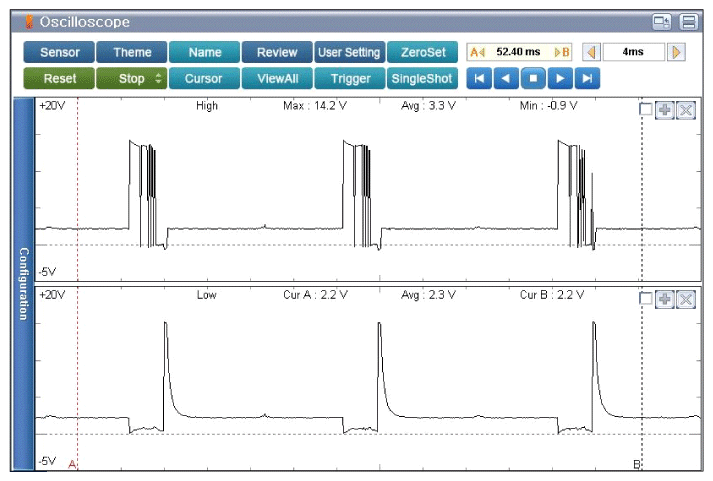

Fig 2: Screen Display - Normal Waveforms Of FPR At Approx. 2000 RPM
Courtesy of KIA MOTORS AMERICA, INC.
