Component Inspection

■ Visual Check (HO2S (B2/S2))

1. IG "OFF" and disconnect HO2S (B2/S2) connector.
2. Check that HO2S (B2/S2) is contaminated or damaged by foreign materials.

■ Check HO2S (B2/S2) Performance

1. Warm up the engine to normal operating temperature.
2. Connect VMI to GDS and select "Oscilloscope".
3. Connect Channel A positive probe to Pin No. 1 (high) and Channel A negative probe to Pin No. 2 (low).

   Specification:  Refer to Fig 1

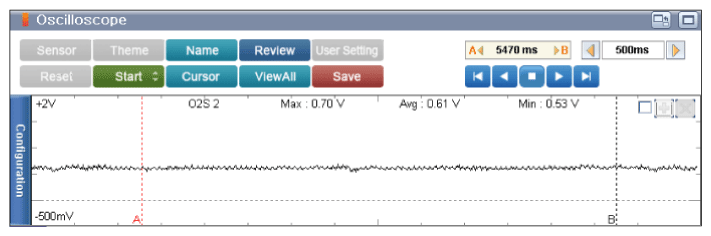

   Fig 1: Screen Display - Signal Waveform Of HO2S 2 At Normal Condition

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the HO2S (B2/S2) operate properly? (Check Variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully redo this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, replace the HO2S (B2/S2) and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
