Components Location

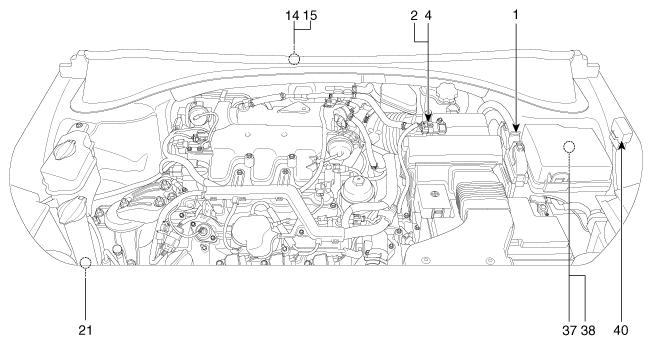

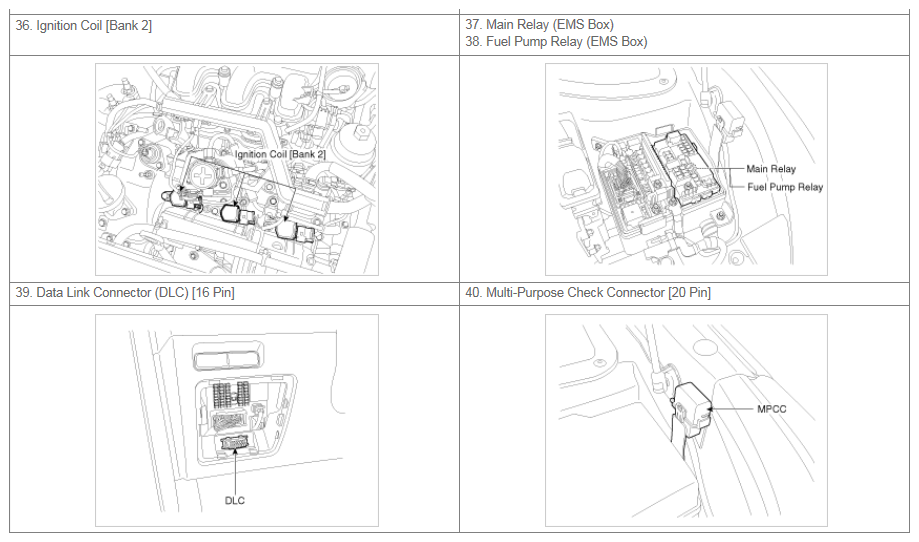

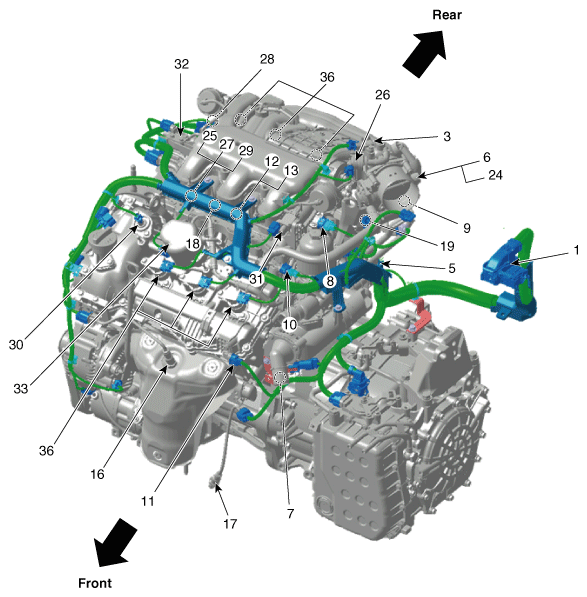

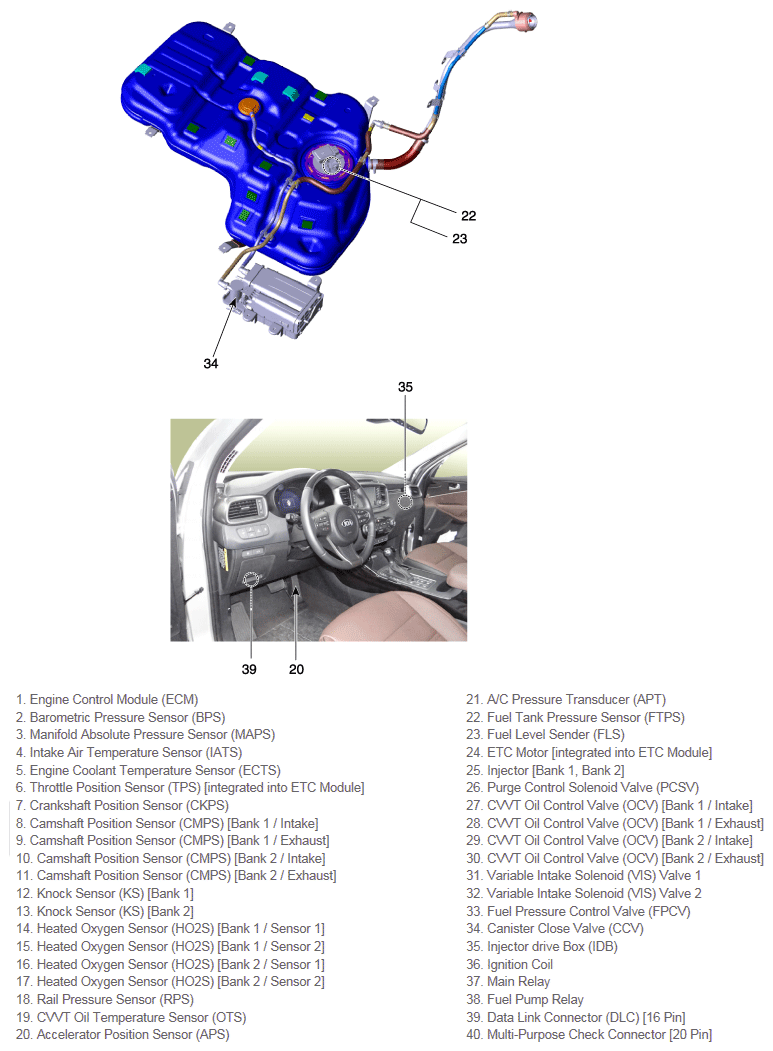

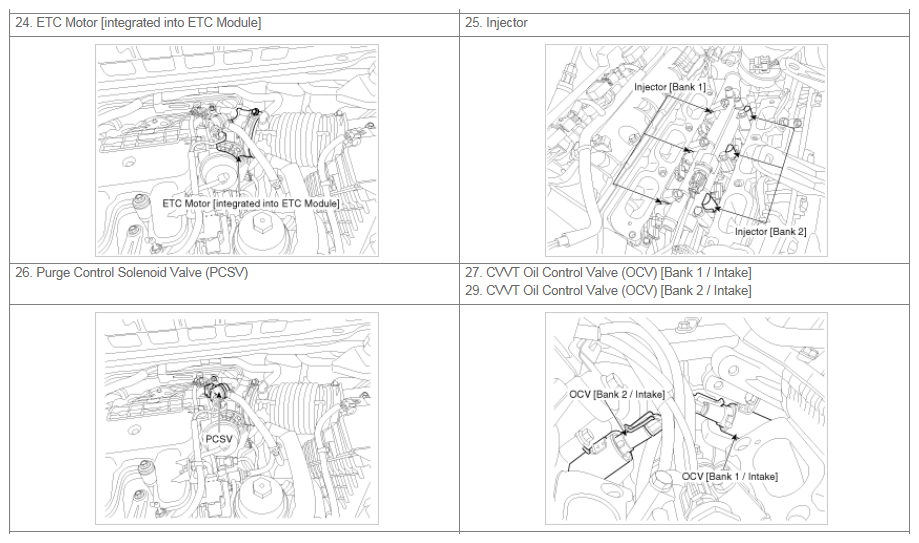

Fig 1: Engine Control System Components (1 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

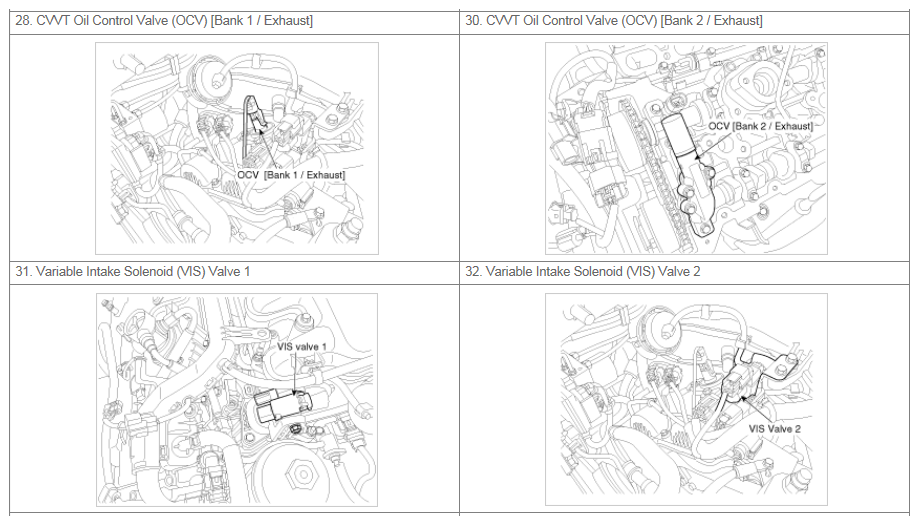

Fig 2: Engine Control System Components (2 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

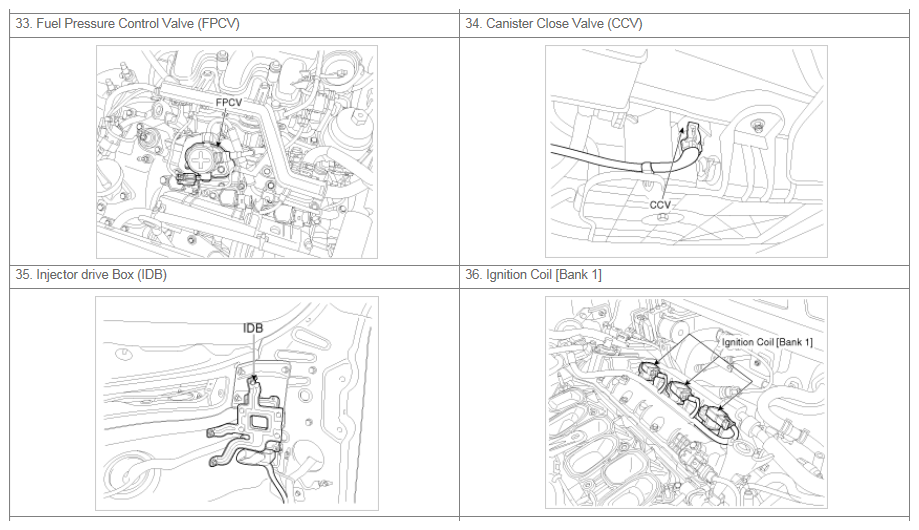

Fig 3: Engine Control System Components (3 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

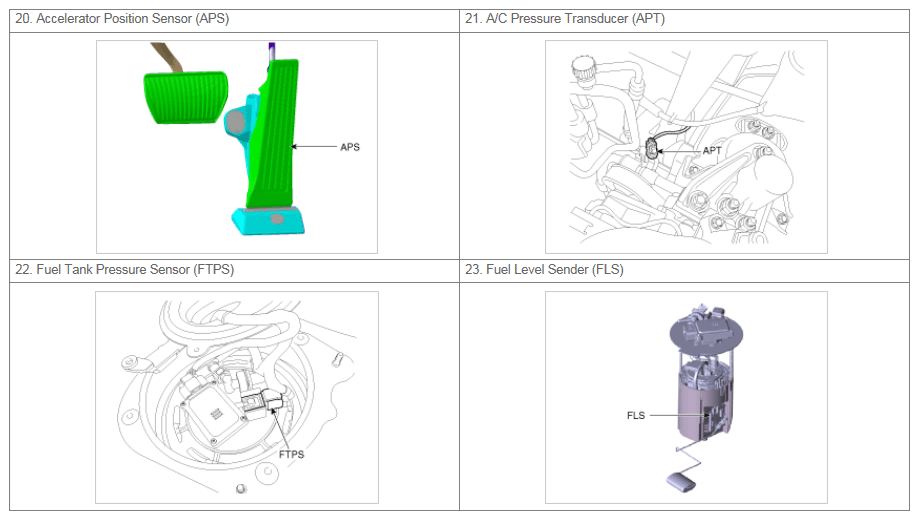

Fig 4: Engine Control System Components (4 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

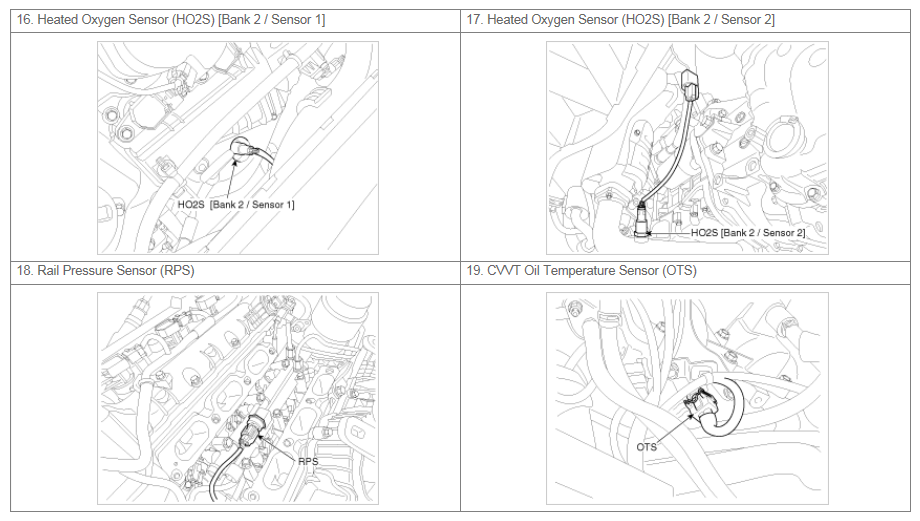

Fig 5: Engine Control System Components (5 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

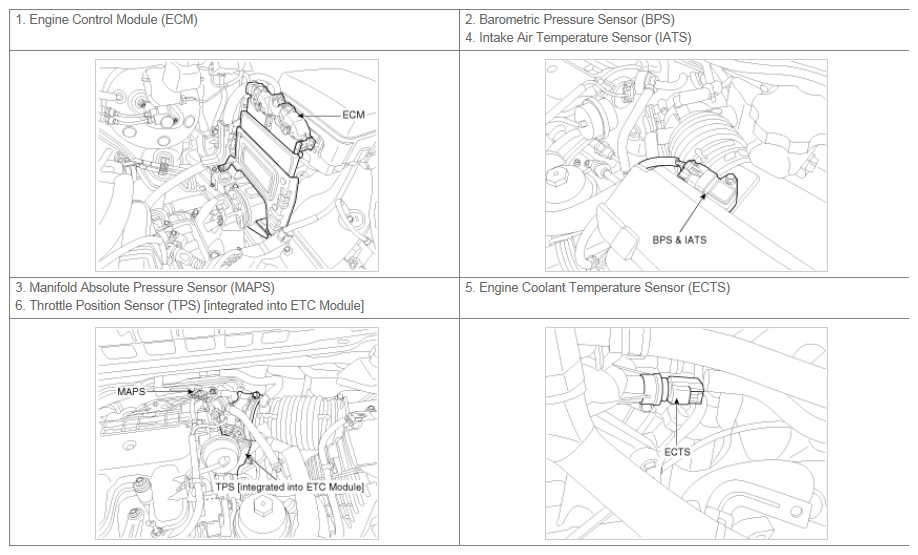

Fig 6: Engine Control System Components (6 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

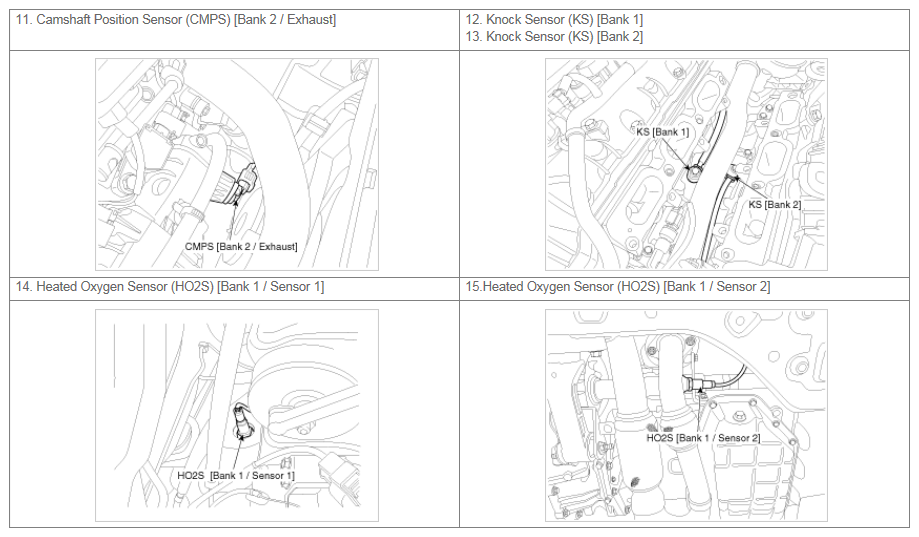

Fig 7: Engine Control System Components (7 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

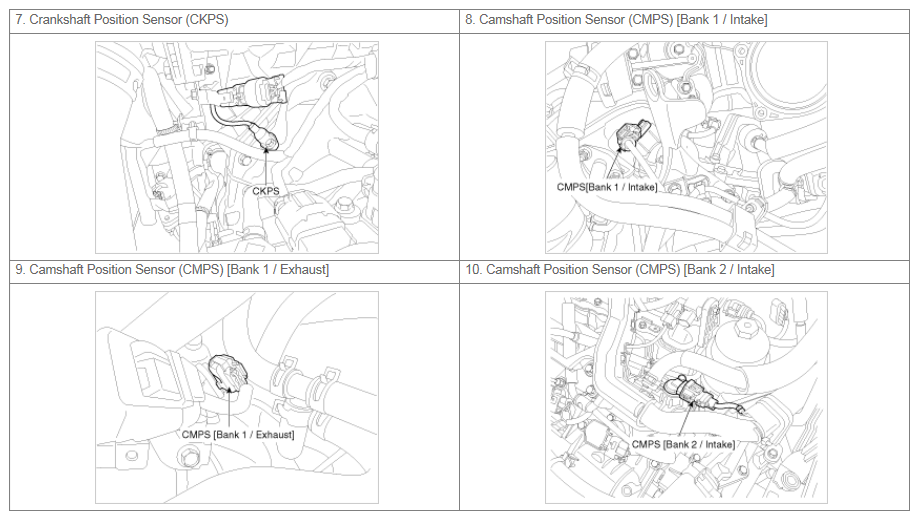

Fig 8: Engine Control System Components (8 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Engine Control System Components (9 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Engine Control System Components (10 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Engine Control System Components (11 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Engine Control System Components (12 Of 12)

Courtesy of KIA MOTORS AMERICA, INC.
