Circuit Diagram

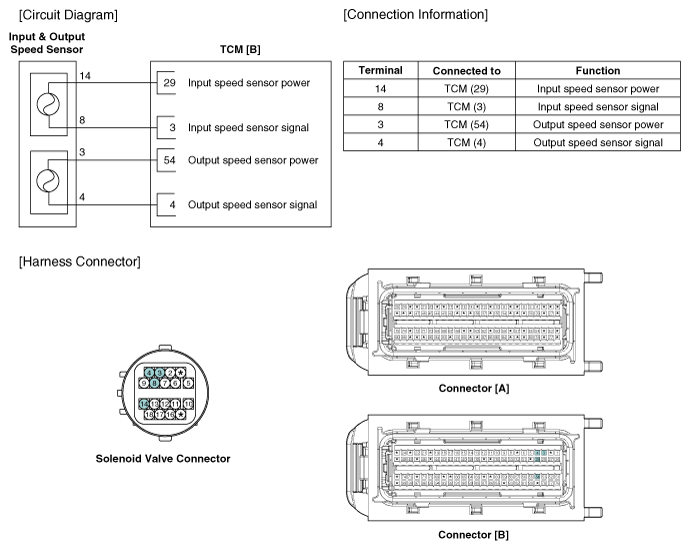

Fig 1: Input And Output Speed Sensor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
