Components And Components Location: Components

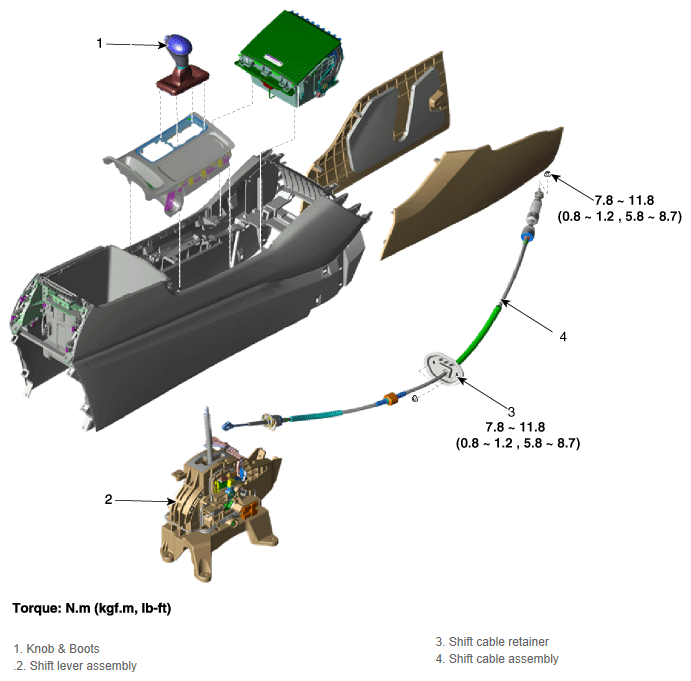

Fig 1: Exploded View Of Shift Cable With Torque Specification
G11872518Courtesy of KIA MOTORS AMERICA, INC.
