Fuel Tank

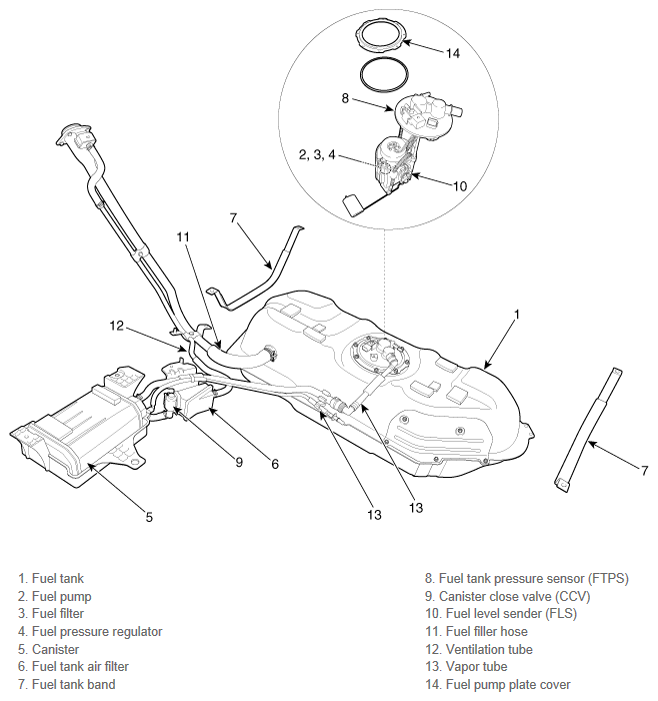

Fig 1: Fuel Tank Exploded View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
