Components And Components Location: Components

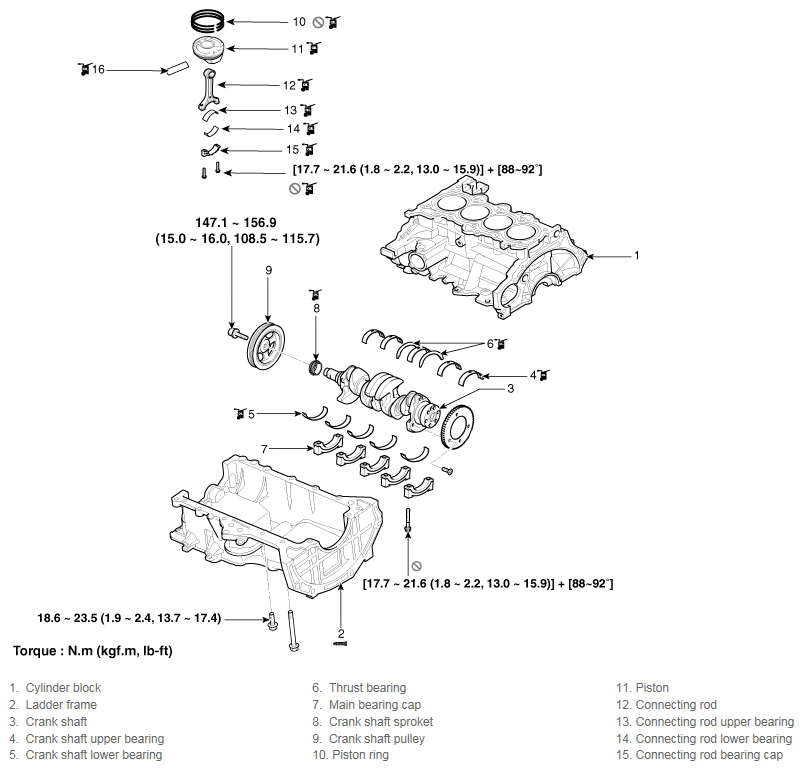

Fig 1: Cylinder Block With Exploded View Torque Specifications
G11949683Courtesy of KIA MOTORS AMERICA, INC.
