Mode $06 Data Definitions For 2005-2006 Spectra 4 CYL.

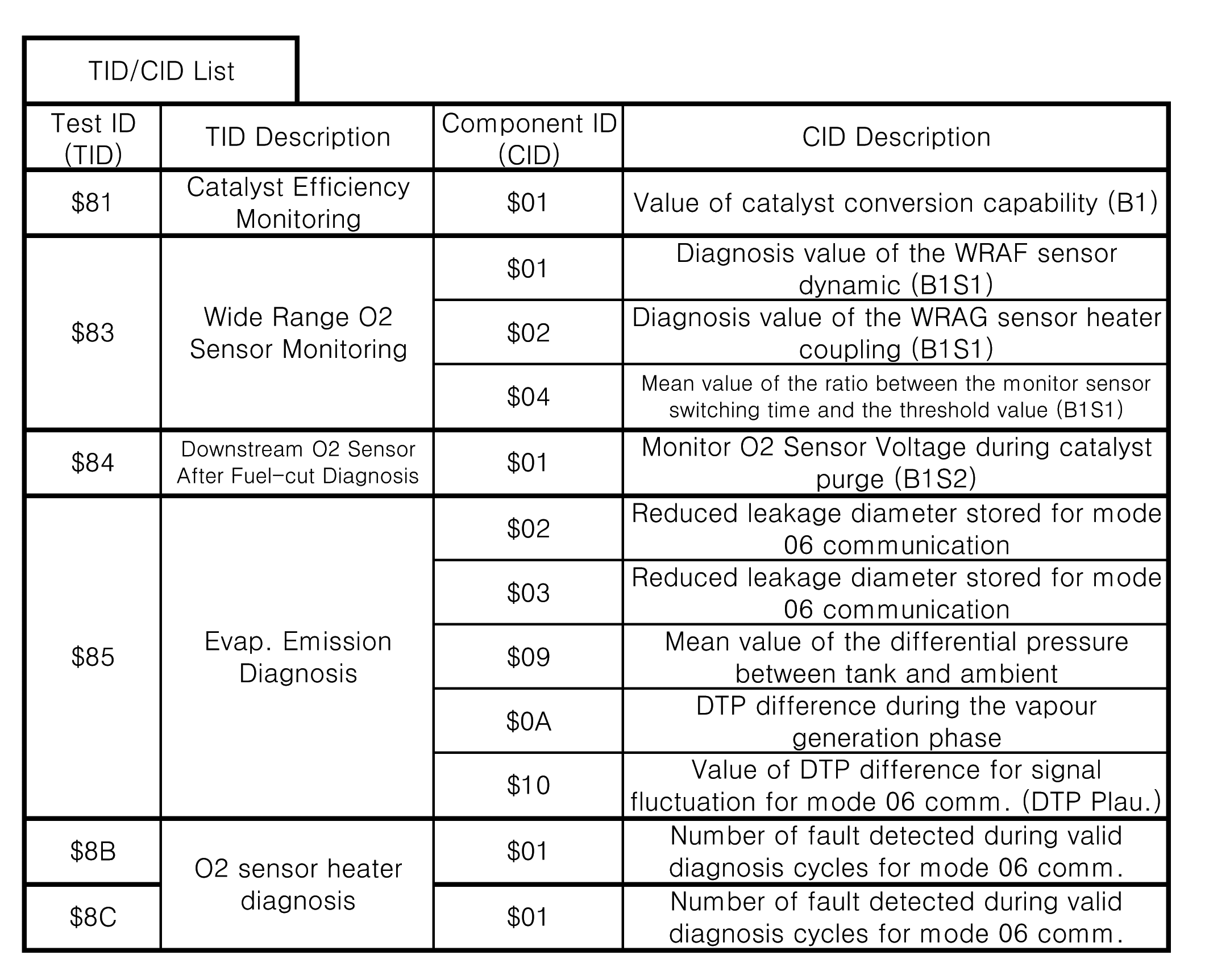

Fig 1: Mode $06 Test Identification

Courtesy of KIA MOTORS AMERICA, INC.

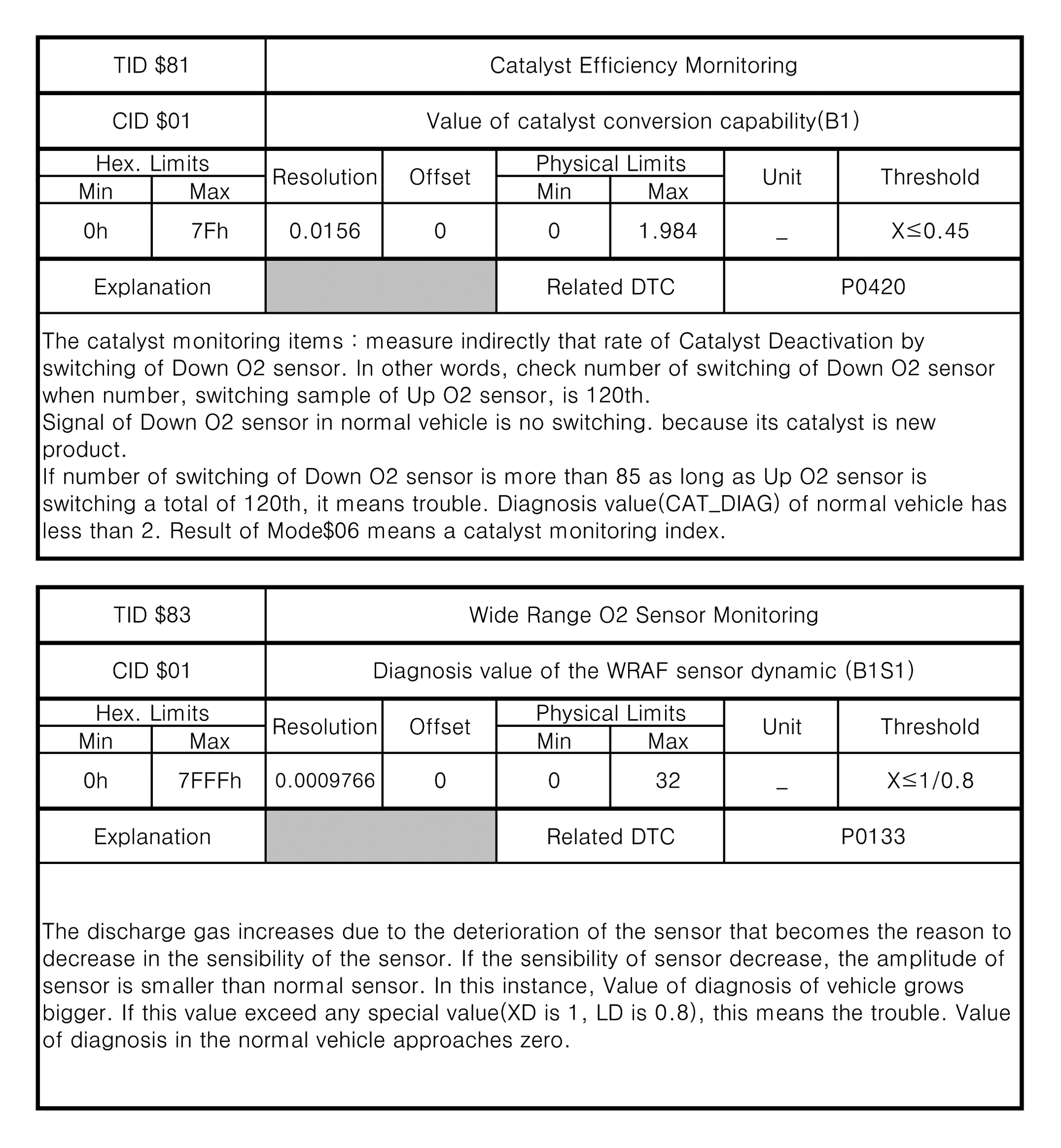

Fig 2: Mode $06 Test Information (1 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

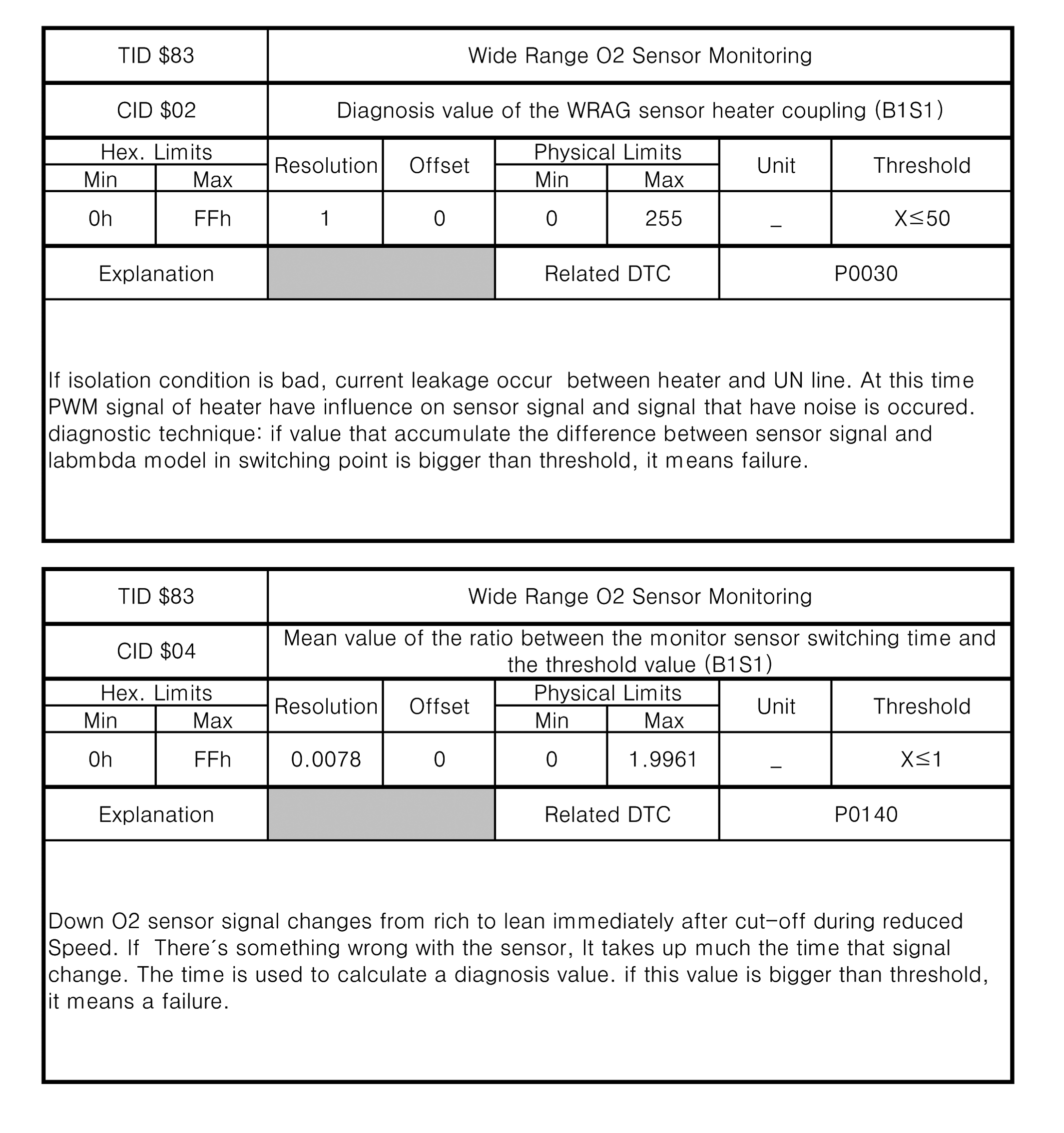

Fig 3: Mode $06 Test Information (2 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

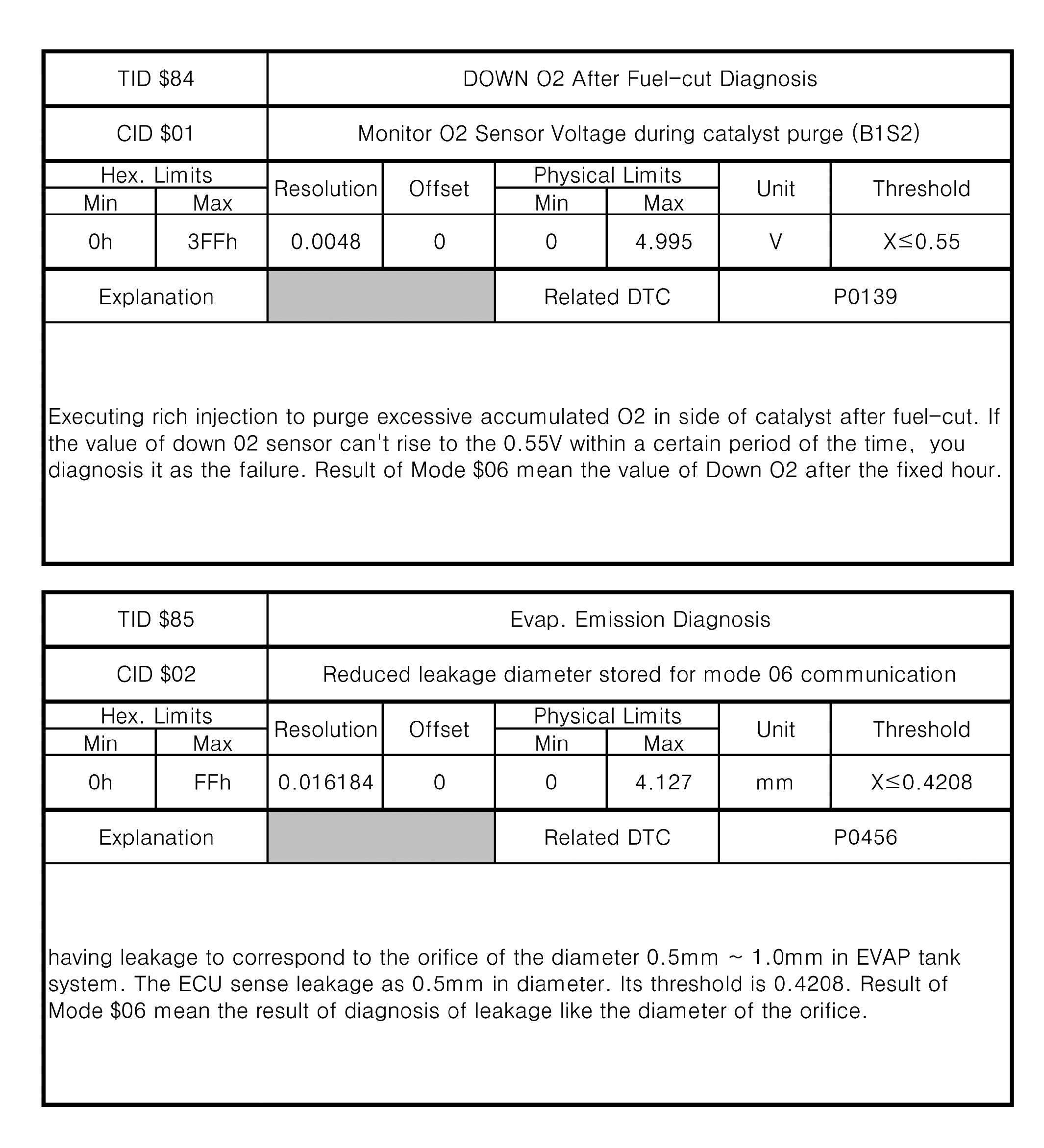

Fig 4: Mode $06 Test Information (3 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

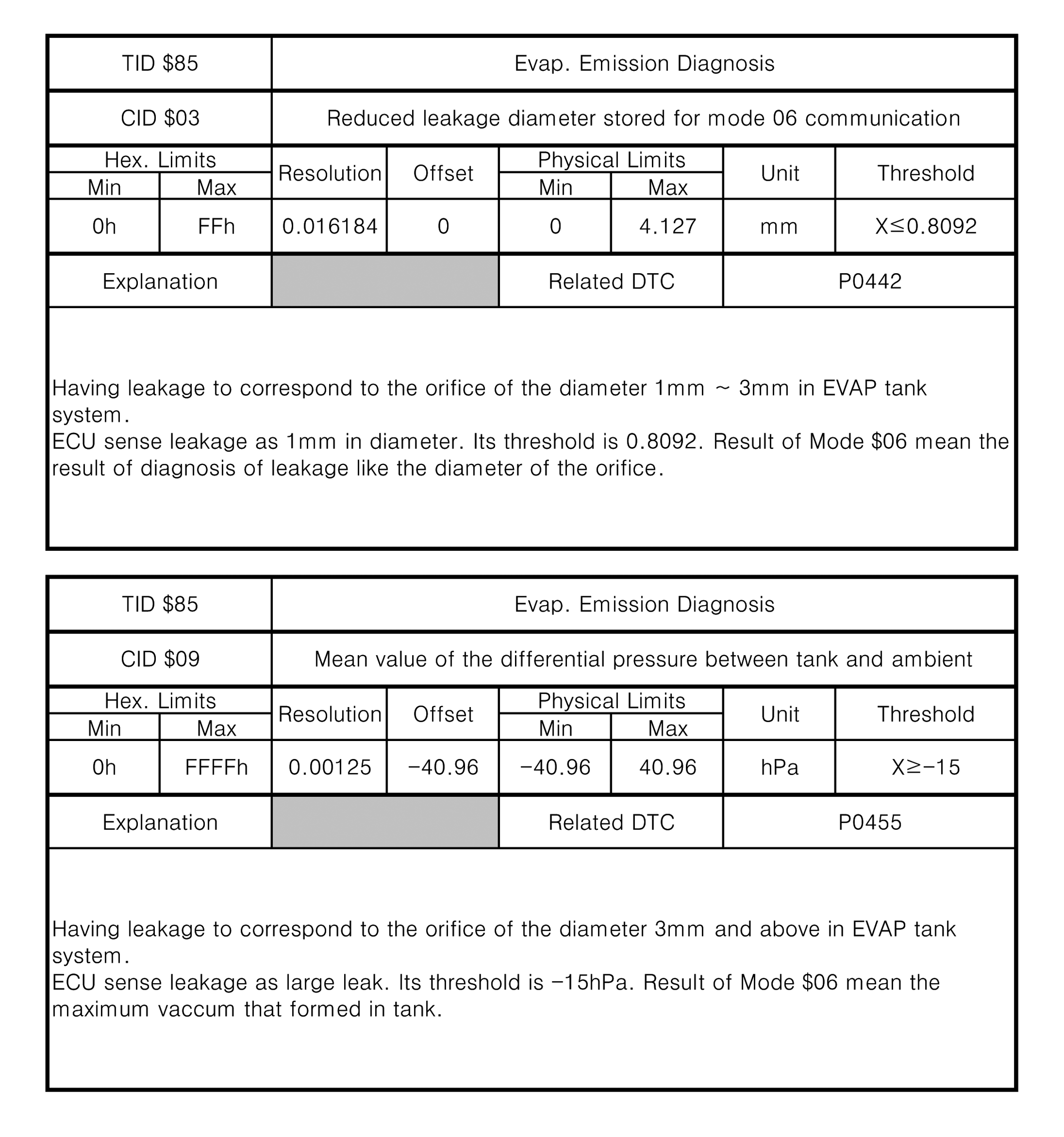

Fig 5: Mode $06 Test Information (4 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

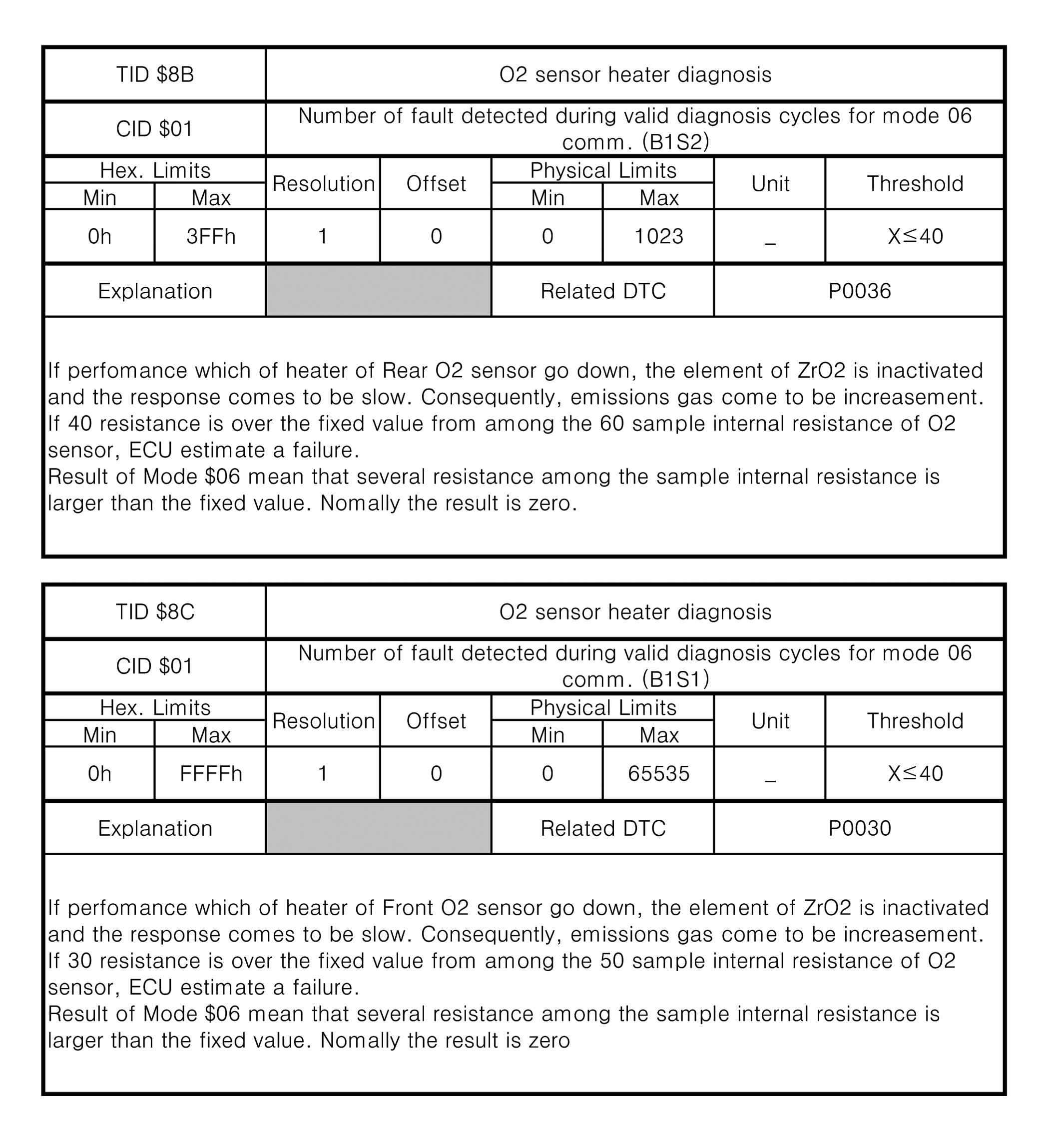

Fig 6: Mode $06 Test Information (5 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.

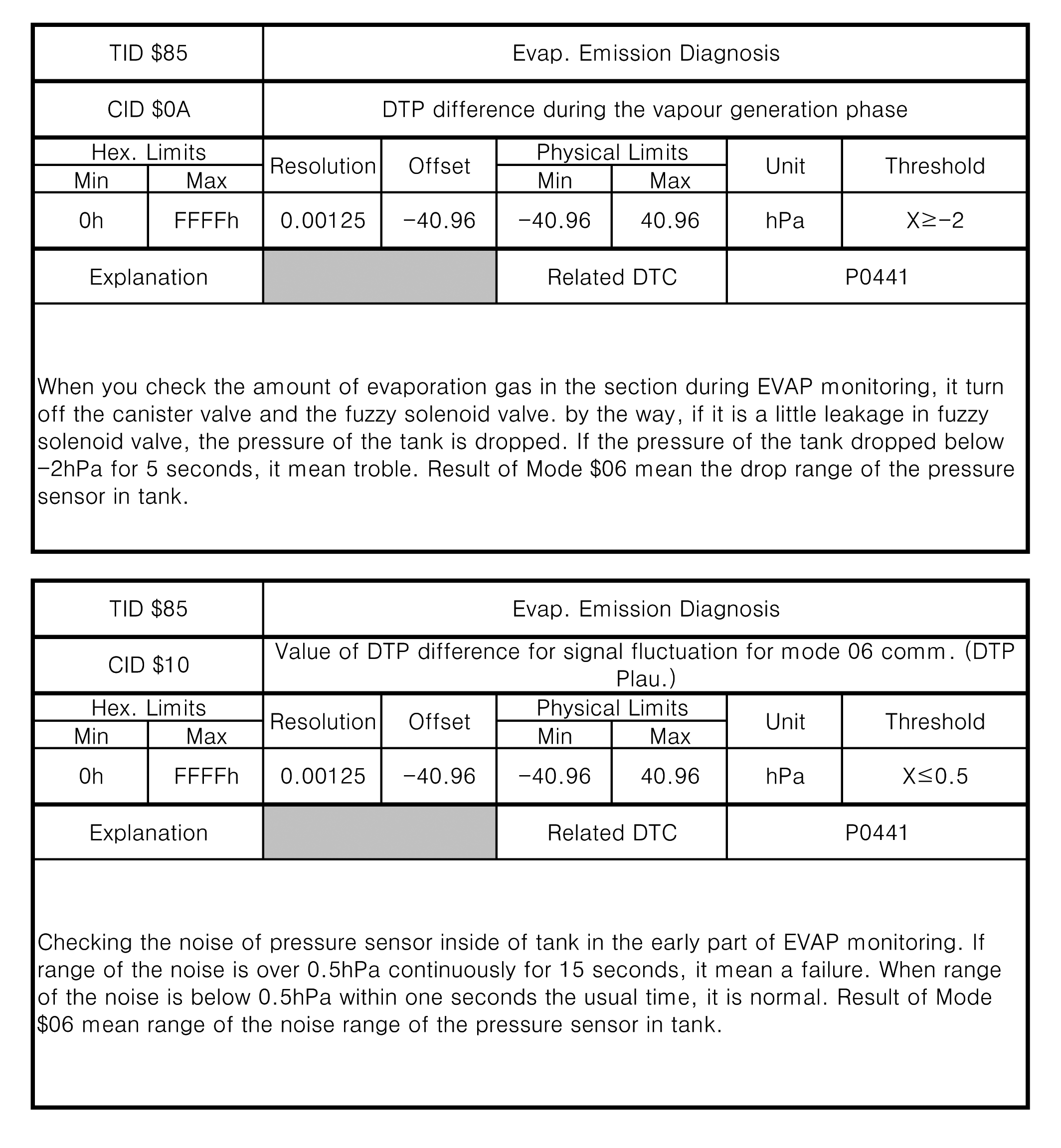

Fig 7: Mode $06 Test Information (6 Of 6)

Courtesy of KIA MOTORS AMERICA, INC.
