Monitor KDS/GDS Data

  1. Connect KDS/GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" related to DTC with KDS/GDS.

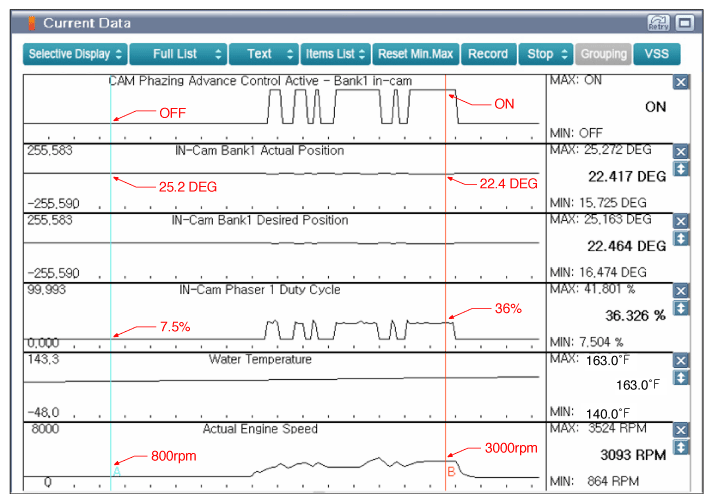

    Fig 1: Screen Display - Engine Idle After Warm Up & Approx. 3000 RPM
    G11943849Courtesy of KIA MOTORS AMERICA, INC.
    1. Engine idle after warm up
    2. Approx. 3000 RPM
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
