Engine Control System Diagnosis - 1.6L (1 Of 3)
>>
DTC P0091: Fuel Pressure Regulator 1 Control Circuit Low
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

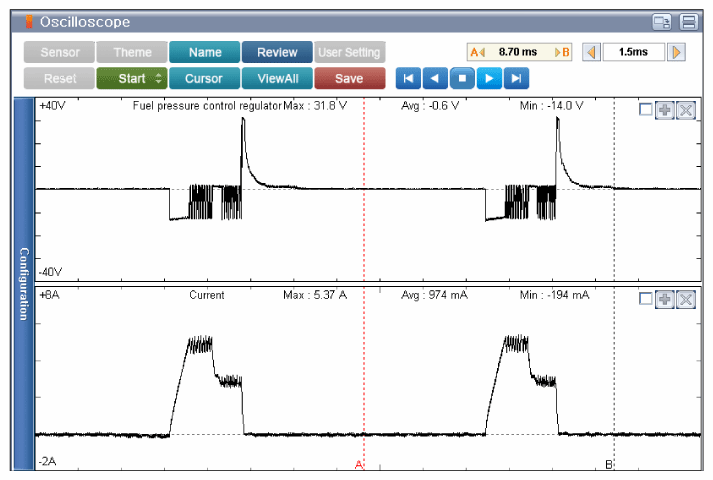

Fig 1: Screen Display - Engine Idle After Warm Up
Courtesy of KIA MOTORS AMERICA, INC.

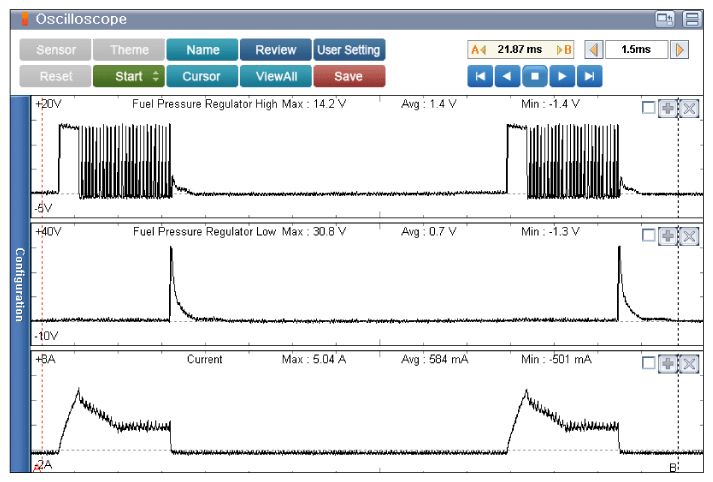

Fig 2: Screen Display - Approx. 2000 RPM
Courtesy of KIA MOTORS AMERICA, INC.

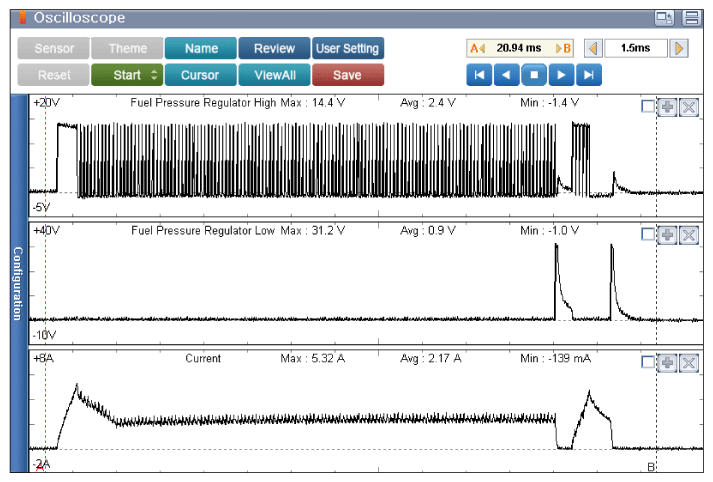

Fig 3: Screen Display - Approx. 3000 RPM
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
