Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Check the "Current Data"  for related DTC with KDS/GDS.

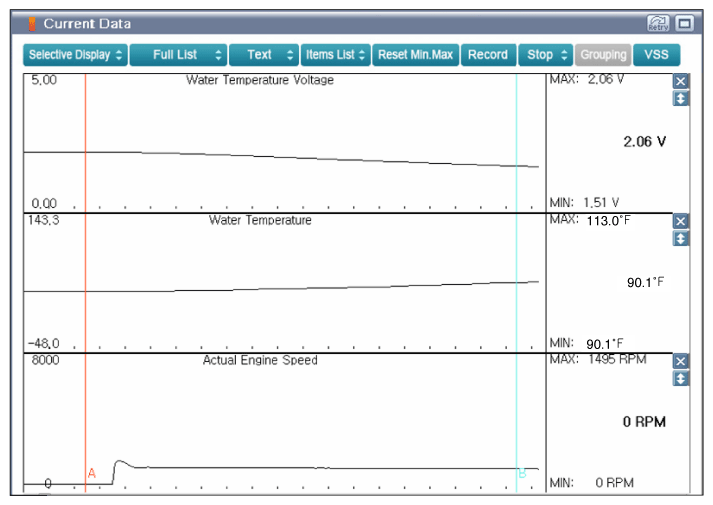

    Fig 1: Screen Display - Cold Engine Condition
    G11943988Courtesy of KIA MOTORS AMERICA, INC.

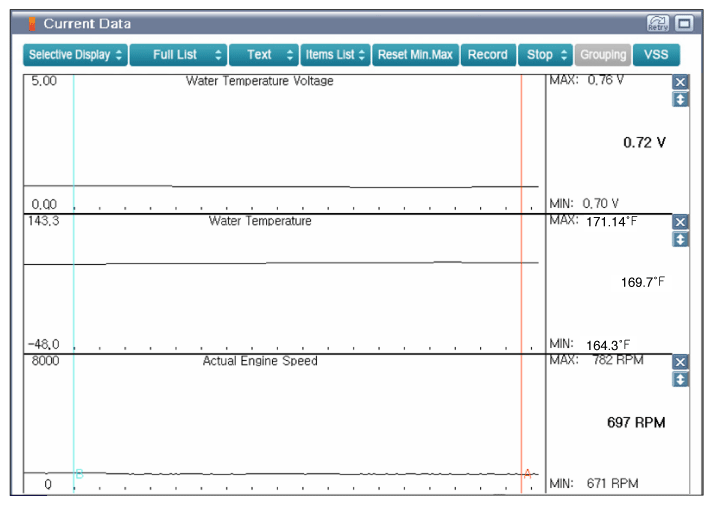

    Fig 2: Screen Display - Engine At Idle And No Load
    G11943989Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Screen Display - Engine Coolant Temperature Sensor (ECTS) - Open Circuit (Value Fixed At Current Temperature)
    G11943990Courtesy of KIA MOTORS AMERICA, INC.
  3. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
