Signal Waveform & Data

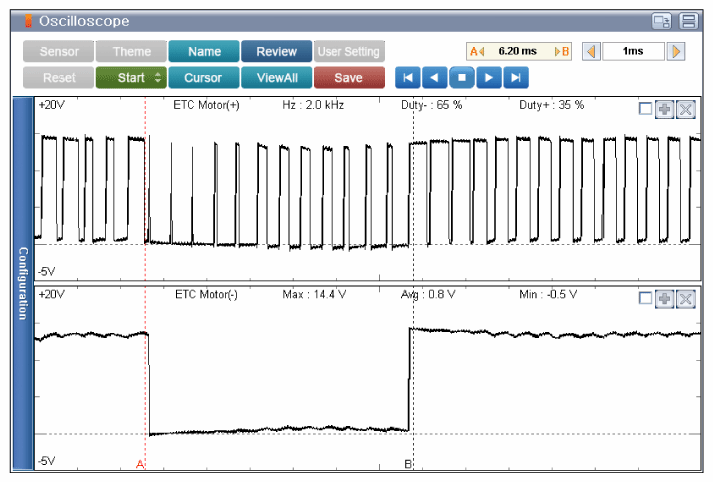

Fig 1: Scantool Display - Signal Waveform & Data (Engine Idle After Warm-Up)

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor (+) → Duty (+) Approx. 86%

Duty (-) Approx. 14%

ETC Motor (-) → Not in Control

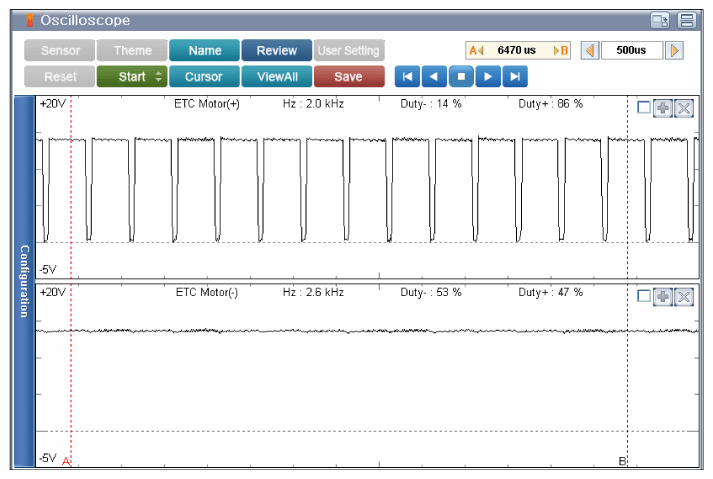

Fig 2: Scantool Display - Waveform Of ETC Motor Operation Immediately While Accelerating Engine

Courtesy of KIA MOTORS AMERICA, INC.
