Component Inspection

■ Positive Crankcase Ventilation (PCV) Valve Inspection

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Perform "Actuation Test  " for PCSV.

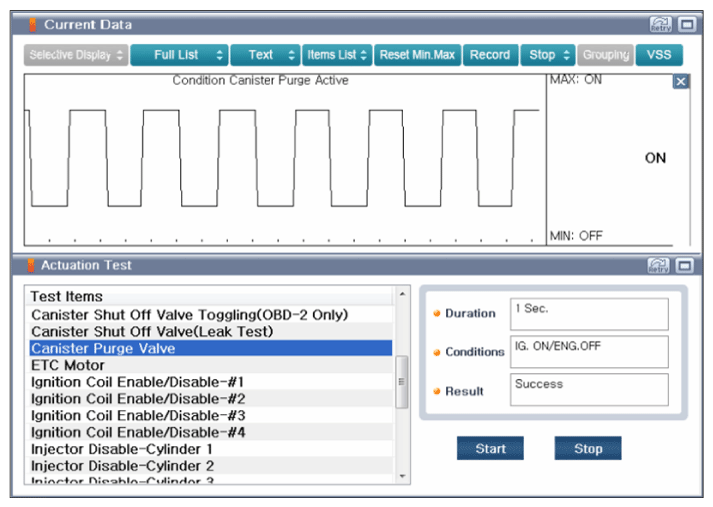

   Fig 1: Scantool Display - Canister Purge Valve Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.
4. Ignition "OFF".
5. Disconnect PCSV connector.
6. Measure resistance between power and control terminal of the PCSV. (component side)

   Specification:  Approx. 2.0kΩ [20°C (68°F)]

   Courtesy of

7. Does the PCSV operate properly and is the measured resistance within specification?

   YES

   • Go to "Injector Operation Inspection" procedure below.

   NO

   • Replace it, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Injector Operation Inspection

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Perform "Actuation Test  " for Injector.

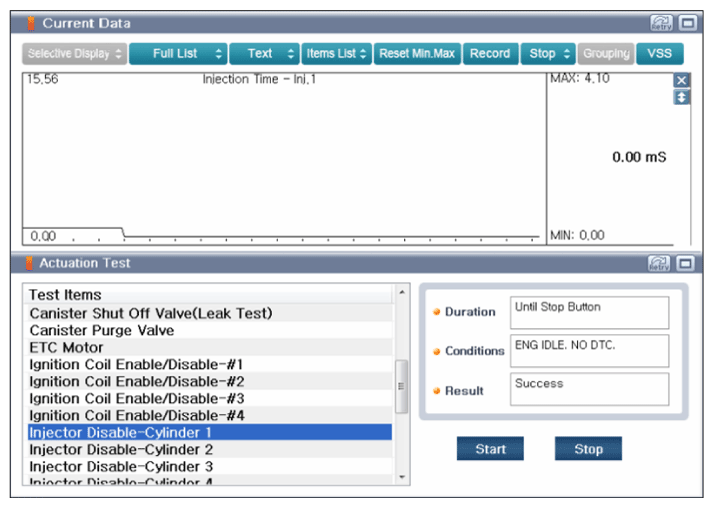

   Fig 2: Scantool Display - Injector Disable (Cylinder 1, 2, 3, 4 Actuation Test)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Check if RPM decreases when performing injector actuation test.
4. Does any cylinder change in RPM or small change in RPM when disabling individual injector?

   YES

   • Replace injector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
