System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON", Engine "OFF".
3. Select the "Vehicle S/W Management  " about related DTC with KDS/GDS.

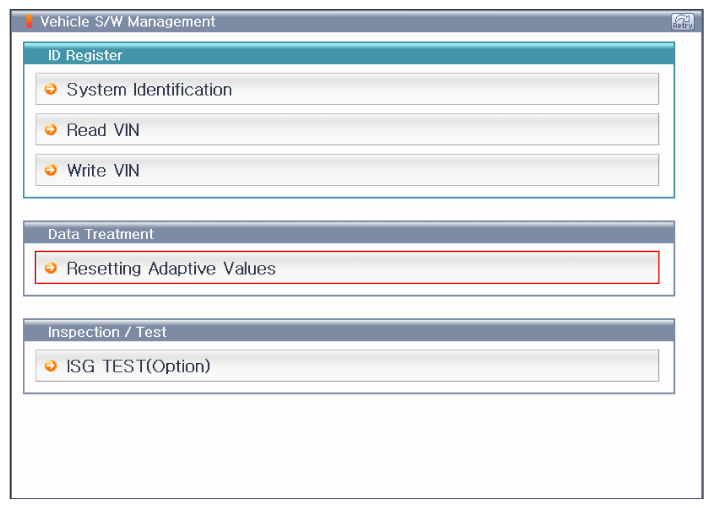

   Fig 1: Scantool Display - Select Resetting Adaptive Values To Reset TPS Values

   Courtesy of KIA MOTORS AMERICA, INC.

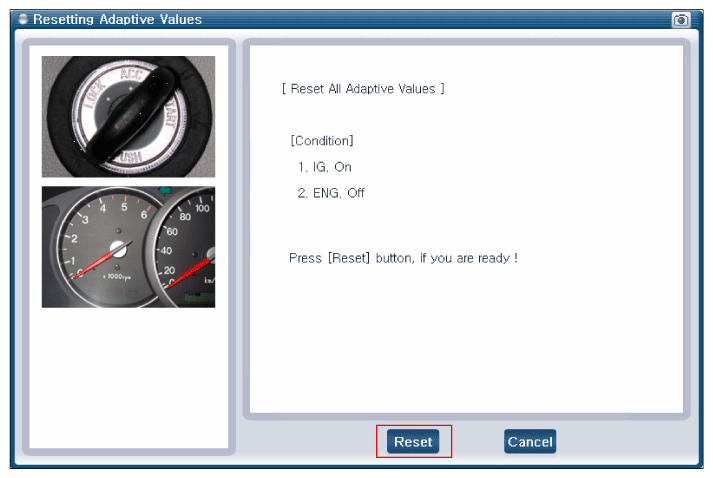

   Fig 2: Scantool Display - Select Reset Button To Continue With Next Procedure

   Courtesy of KIA MOTORS AMERICA, INC.

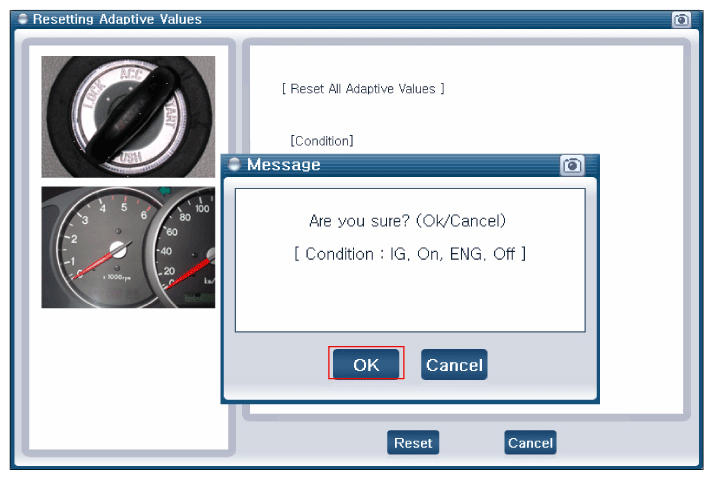

   Fig 3: Scantool Display - Select OK Button (Ignition ON, Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

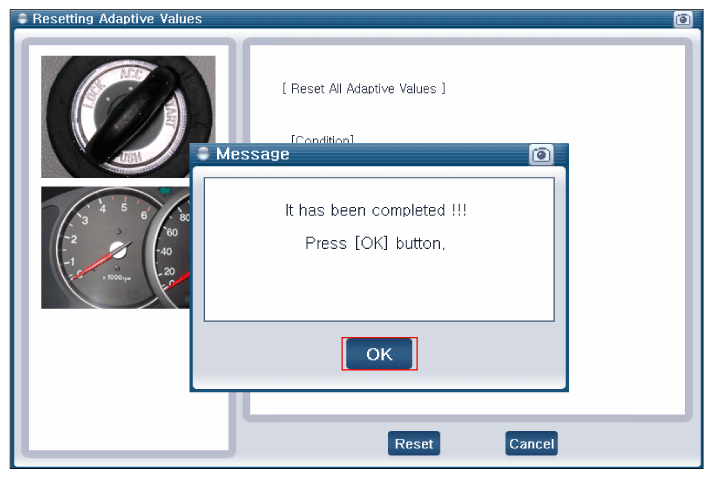

   Fig 4: Scantool Display - Adaptive Values Resetting Complete

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished, select "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
